Description
Brand - BECO
Item Number - FL 209 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

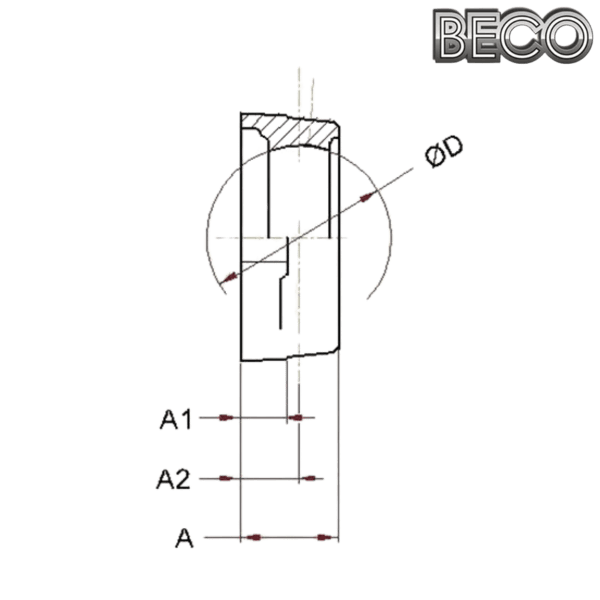

Diameter (D) mm - 85
Maximum Dimension (L) mm - 180
Dimension (J) mm - 148
Maximum Dimension (A) mm - 45
Maximum Dimension (A1) mm - 18
Dimension (A2) mm - 24
Dimension (H) mm - 112
Dimension (N) mm - 15.0 ± 2.0
* Weight (kg) - 0.91
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
FL 209 SS + UC 209 BHTS ZZ C4 200° = UCFL 209 BHTS ZZ C4 200°
FL 209 SS + UC 209 BHTS 2RS VT 250°-280° = UCFL 209 BHTS 2RS VT 250°-280°
FL 209 SS + UC 209 BHTS ZZ 280° = UCFL 209 BHTS ZZ 280°
FL 209 SS + UC 209 BHTS ZZ 350° Beco Plus = UCFL 209 BHTS ZZ 350° Beco Plus
FL 209 SS + UC 209 BHTS ZZ GR CG 350° = UCFL 209 BHTS ZZ GR CG 350°
FL 209 SS + UC 209 BSS 2RS NSF H1 = UCFL 209 BSS 2RS NSF H1
Note:
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
