Description
Brand - BECO
Item Number - F 208 SS BECO
Category - Housing in Stainless Steel (not Magnetic)

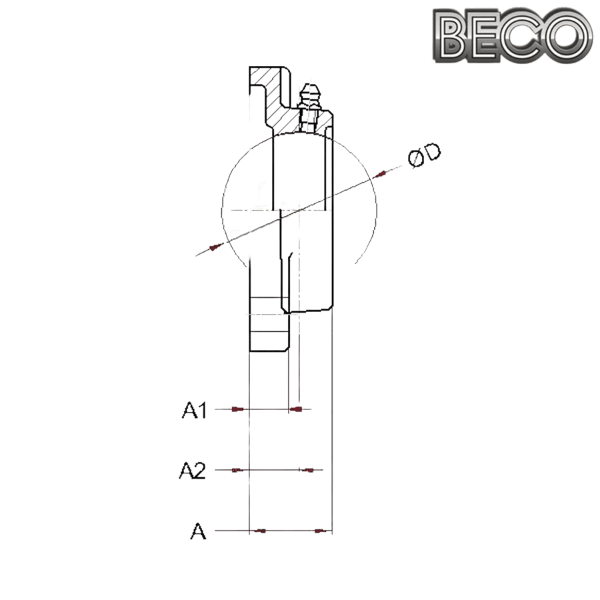

Diameter (D) mm - 80
Maximum Dimension (L) mm - 132
Dimension (J) mm - 102
Maximum Dimension (A) mm - 43
Maximum Dimension (A1) mm - 17
Dimension (A2) mm - 24
Diameter (N) mm - 14.0 ± 1.0
* Weight (kg) - 1.01
----------------------------------------------
Housing + Bearing = Bearing Unit
----------------------------------------------
F 208 SS + UC 208 BHTS ZZ C4 200° = UCF 208 BHTS ZZ C4 200°
F 208 SS + UC 208 BHTS 2RS VT 250°-280° = UCF 208 BHTS 2RS VT 250°-280°
F 208 SS + UC 208 BHTS ZZ 280° = UCF 208 BHTS ZZ 280°
F 208 SS + UC 208 BHTS ZZ 350° Beco Plus = UCF 208 BHTS ZZ 350° Beco Plus
F 208 SS + UC 208 BHTS ZZ GR CG 350° = UCF 208 BHTS ZZ GR CG 350°
F 208 SS + UC 208 BSS 2RS NSF H1 = UCF 208 BSS 2RS NSF H1
Note
* Weight for housings is indicative. The production is made from Stainless steel Casting and weight depends from the condition of the moulding
** Images are for representation purposes only
