Description
Brand - DODGE
Item Number - DODGE - P2B-SCEZ-40M-SHCR
Category - E-Z KLEEN Mounted Bearings With Corrosion Resistant Insert (SCEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - P2B-SCEZ-40M-SHCR
Description (Standard Insert with Flingers) - P2B-SCEZ-40M-SH
Weight (kg) - 1.95

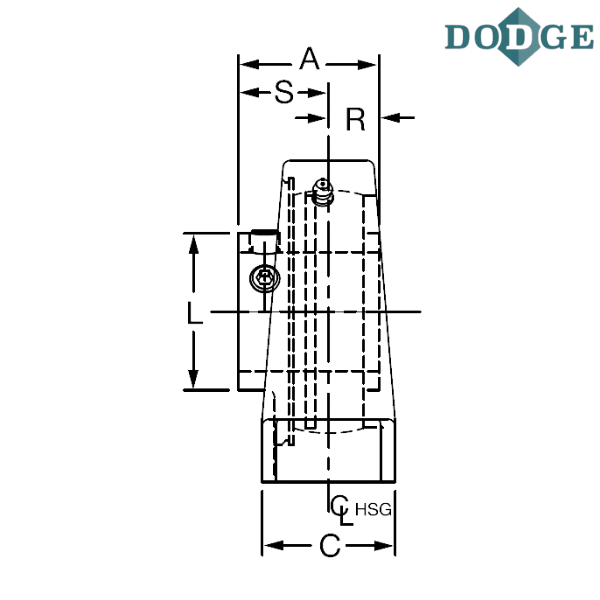

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 177.8
Width (C) mm - 38.1
Bolt to Bolt Minimum Distance (D min) mm - 131.6
Bolt to Bolt Maximum Distance (D max) mm - 152.4
F-Bolt Diameter - M12
G (mm) - 24.6
H (mm) - 19.1
Overall Height (J) mm - 101.6
L (mm) - 52.1
Base to Center Height (M) mm - 54
R (mm) - 19.1
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
