DODGE - P2B-DLUEZ-30M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - P2B-DLUEZ-30M-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 206 (DLU)
Shaft Size (mm) - 30
Description - P2B-DLUEZ-30M-SHCR
Weight (kg) - 1.18

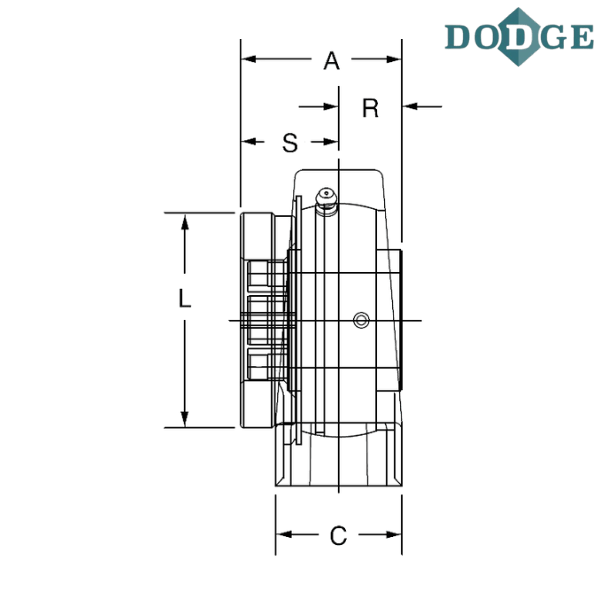

Length Through Bore (A) mm - 39.6
Overall Length (B) mm - 158.8
Width (C) mm - 31.8
Bolt to Bolt Minimum Distance (D min) mm - 108.2
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.6
H (mm) - 15
Overall Height (J) mm - 81
L (mm) - 56.4
Base to Center Height (M) mm - 42.9
R (mm) - 14.7
S (mm) - 24.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
UEZ - higher back pillow block, E-Z KLEEN/ULTRA KLEEN (for interchangeability with competitive pillow blocks)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
