Description
Brand - McMASTER-CARR
Item Number - 6318K63 McMASTER-CARR
Category - Threaded V-Groove Track Rollers (Steel V-Groove Rollers with Seal)
Imperial :
Roller Diameter (inch) - 2.5
Roller Width (inch) - 1.25
Stud Diameter (inch) - 0.75
Stud Length (inch) - 1.75
Thread Size (inch) - 3/4-16
Thread Diameter (inch) - 0.75
Number of Threads per inch - 16
Thread Length (inch) - 0.875
Shoulder Diameter (inch) - 1
Shoulder Length (inch) - 0.0625
Groove Width (inch) - 1
Groove Depth (inch) - 0.5
Maximum Speed (rpm) - 6000
Radial Static Load Capacity (lbs) - 1100
Radial Dynamic Load Capacity (lbs) - 1000
Static Thrust Load Capacity (lbs) - 680
Maximum Temperature (°F) - 225°
Inside Bearing Type - Ball Bearing
Includes - Mounting Hardware
Metric :
Roller Diameter (mm) - 63.5
Roller Width (mm) - 31.75
Stud Diameter (mm) - 19.05
Stud Length (mm) - 44.45
Thread Length (mm) - 22.225
Shoulder Diameter (mm) - 25.4
Shoulder Length (mm) - 1.5875
Groove Width (mm) - 25.4
Groove Depth (mm) - 12.7

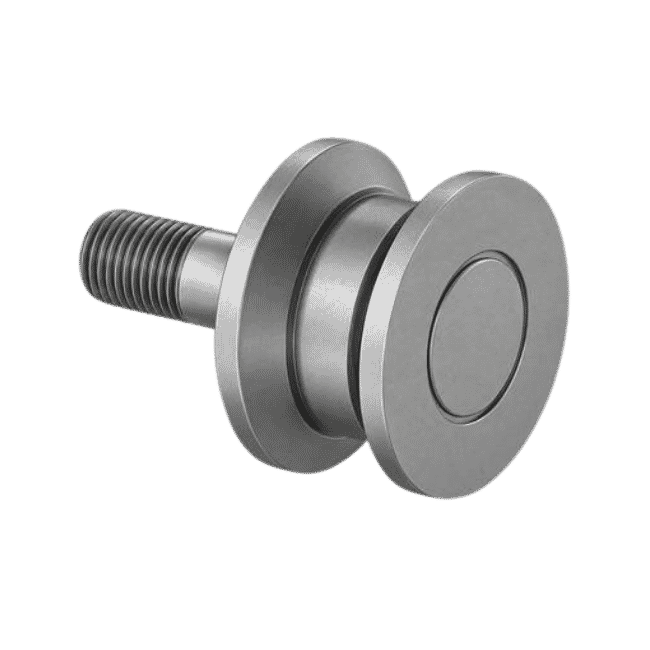

**Images are for representation purposes only
