Description
Brand - McMASTER-CARR

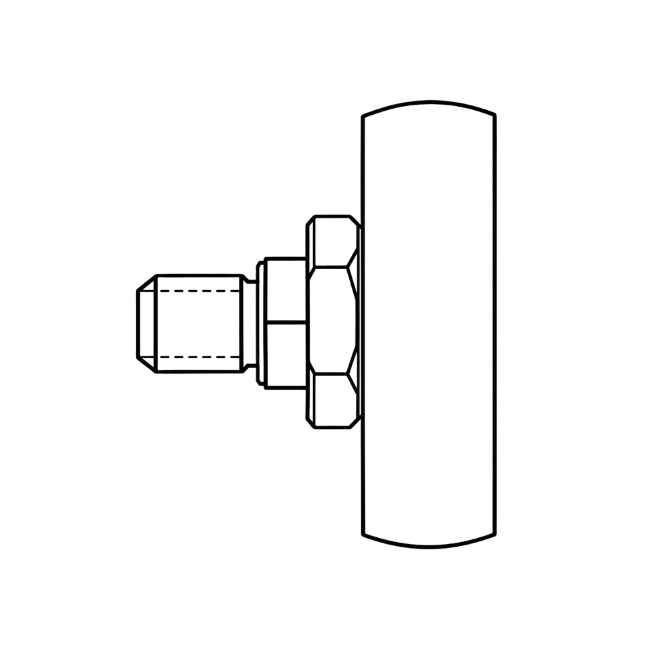

Item Number - 60135K87 McMASTER-CARR
Category - Corrosion-Resistant Track Rollers and Guide Rails (440 Stainless Steel Track Rollers with Adjustable Shoulder)
Imperial :
For Rail Width (inch) - 1.83
Dynamic Load Capacity (lbs) - 175
Roller Diameter (inch) - 1.4
Roller Width (inch) - 0.43
Hex Width (inch) - 0.5
Shoulder Length (inch) - 0.2
Height Adjustment Capability (inch) - 0.031
Stud Length (inch) - 0.5
Thread Length (inch) - 0.5
Maximum Temperature (°F) - 210°
Metric :
For Rail Width (mm) - 46.482
Roller Diameter (mm) - 35.56
Roller Width (mm) - 10.922
Hex Width (mm) - 12.7
Shoulder Length (mm) - 5.08
Height Adjustment Capability (mm) - 0.7874
Stud Diameter (mm) - 6
Stud Length (mm) - 12.7
Thread Size (mm) - M6
Pitch Diameter of Thread (mm) - 1
Thread Length (mm) - 12.7
