Description
Brand - McMASTER-CARR

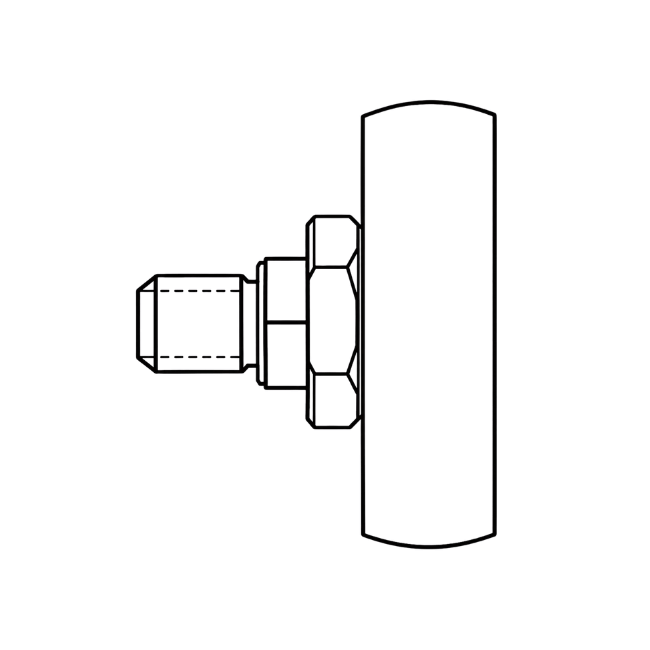

Item Number - 60135K101 McMASTER-CARR
Category - Light Duty Track Rollers and Guide Rails (Nylon Plastic Track Rollers with Adjustable Shoulder)
Imperial :
For Rail Width (inch) - 0.79
Dynamic Load Capacity (lbs) - 5
Roller Diameter (inch) - 0.58
Roller Width (inch) - 0.25
Hex Width (inch) - 0.43
Shoulder Length (inch) - 0.12
Height Adjustment Capability (inch) - 0.032
Stud Length (inch) - 0.21
Thread Length (inch) - 0.21
Maximum Temperature (°F) - 155°
Metric :
For Rail Width (mm) - 20.066
Roller Diameter (mm) - 14.732
Roller Width (mm) - 6.35
Hex Width (mm) - 10.922
Shoulder Length (mm) - 3.048
Height Adjustment Capability (mm) - 0.8128
Stud Diameter (mm) - 5
Stud Length (mm) - 5.334
Thread Size (mm) - M5
Pitch Diameter of Thread (mm) - 0.8
Thread Length (mm) - 5.334
** Images are for representation purposes only
