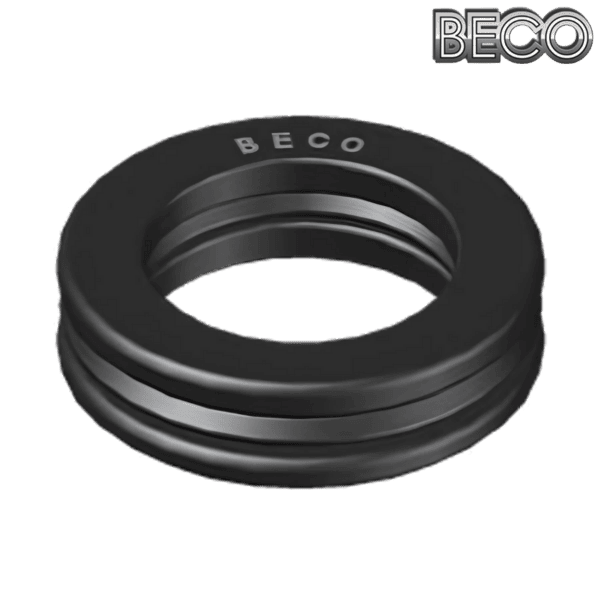

51204 BHTS 330° BECO


Country Of Origin: ITALY
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - BECO
Item Number - 51204 BHTS 330° BECO
Category - Thrust Ball Bearing for Extreme Temperature

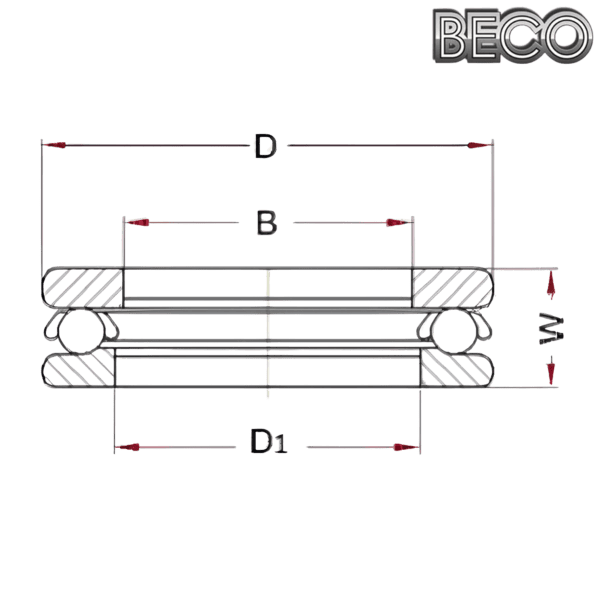

Bore Diameter (B) mm - 20
Outer Diameter (D) mm - 40
Diameter (D1) mm - 22
Width (W) mm - 14
Weight (kg) - 0.08
Limiting Speed (RPM) - 100
Static Load at 330°C (kN) - 28.28
Static Load at 20°C (kN) - 41

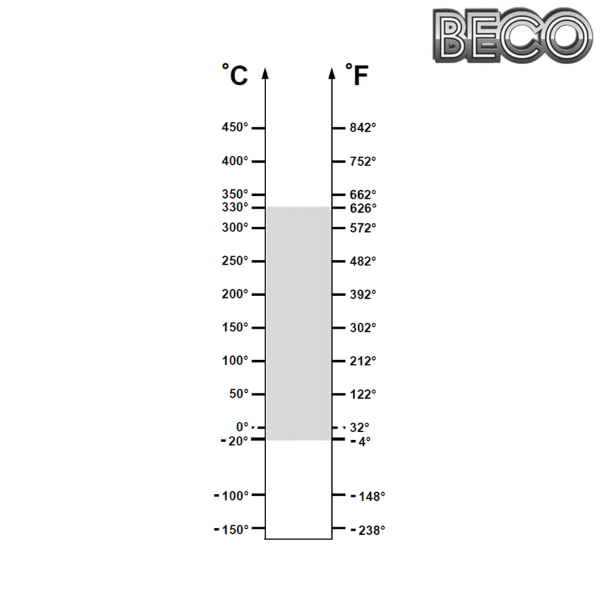

Operating Range - ‒20° / 330°C
Economic Operating Range - 200° / 330°C

NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.

** Images are for representation purposes only
