Description
Brand - DODGE
Item Number - 136775 DODGE - P2B-SCEZ-103-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.1875
Description - P2B-SCEZ-103-SHSS
Weight (lbs) - 2.33

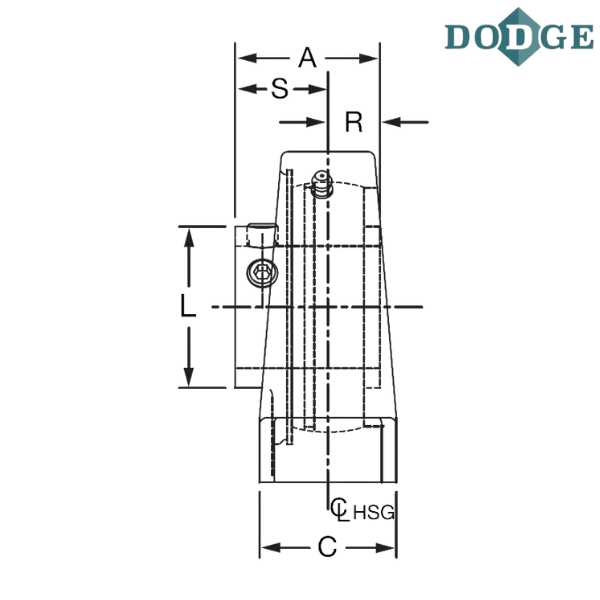

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 6.25
Overall Width (C) inch - 1.25
Bolt to Bolt Minimum Distance (D min) inch - 4.26
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
Bolt Width (G) inch - 0.93
H (inch) - 0.53
Overall Height (J) inch - 3.13
L (inch) - 1.57
Base to Center Height (M) inch - 1.63
R (inch) - 0.58
S (inch) - 0.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
SS - Stainless Steel Insert
** Images are for representation purposes only
