Description
Brand - DODGE
Item Number - 136749 DODGE - TB-SCEZ-30M-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 206
Shaft Size (mm) - 30
Description - TB-SCEZ-30M-PSS
Weight (kg) - 0.49

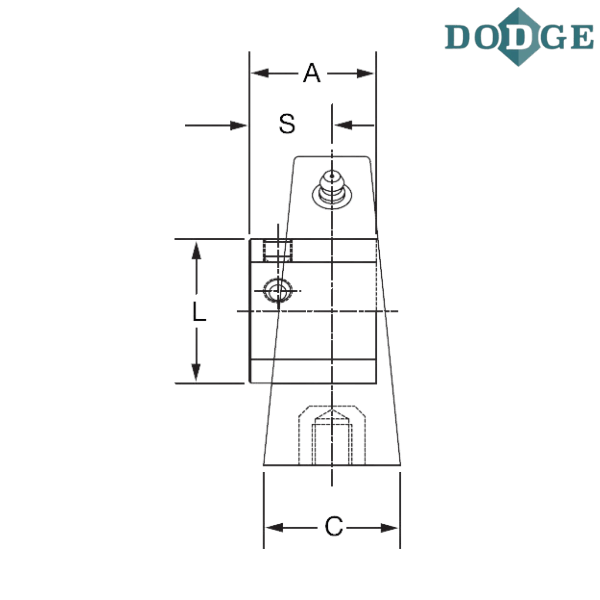

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 111.3
Overall Width (C) mm - 39.9
Bolt Center to Center Length (D) mm - 76.2
Overall Height (J) mm - 85.9
L (mm) - 39.9
Base to Center Height (M) mm - 42.9
Thread Depth (N) mm - 11.4
Bolt Hole Threads (R) mm - M10x1.5
S (mm) - 23.9
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
