Description
Brand - DODGE
Item Number - 136748 DODGE - TB-SCEZ-25M-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 205
Shaft Size (mm) - 25
Description - TB-SCEZ-25M-PSS
Weight (kg) - 0.28

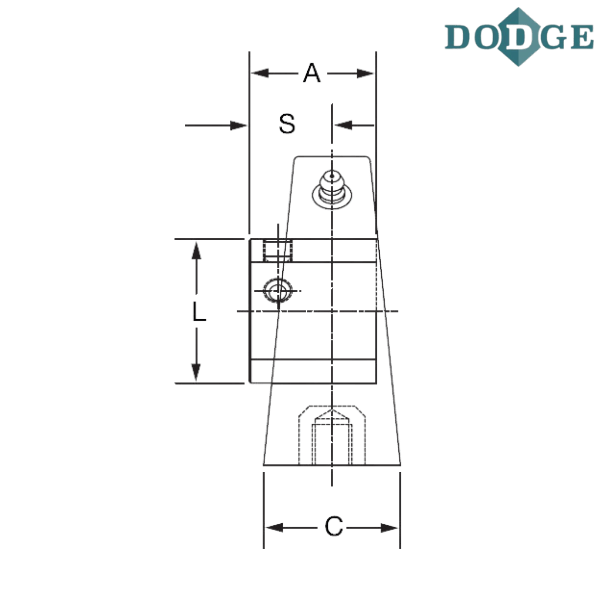

Length Through Bore (A) mm - 34
Overall Length (B) mm - 82.6
Overall Width (C) mm - 37.8
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 73.4
L (mm) - 33.5
Base to Center Height (M) mm - 36.5
Thread Depth (N) mm - 10.2
Bolt Hole Threads (R) mm - M10x1.5
S (mm) - 19.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
