136747 DODGE - TB-SCEZ-20M-PSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136747 DODGE - TB-SCEZ-20M-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 204
Shaft Size (mm) - 20
Description - TB-SCEZ-20M-PSS
Weight (kg) - 0.29

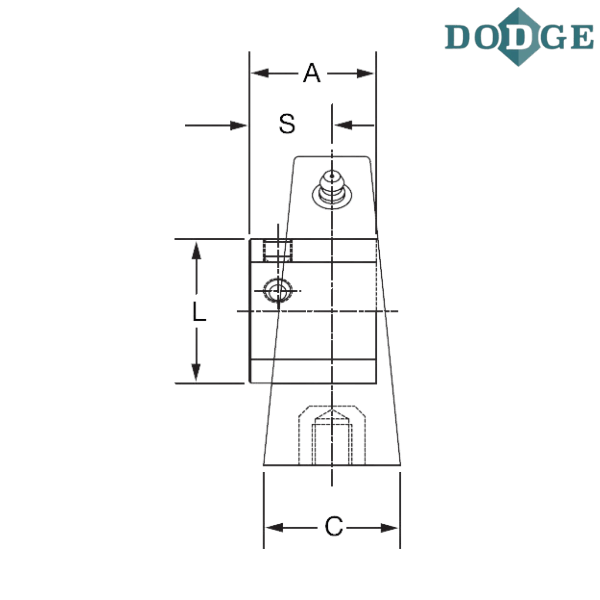

Length Through Bore (A) mm - 31.2
Overall Length (B) mm - 82.6
Overall Width (C) mm - 37.6
Bolt Center to Center Length (D) mm - 50.8
Overall Height (J) mm - 67.3
L (mm) - 28.2
Base to Center Height (M) mm - 33.4
Thread Depth (N) mm - 10.2
Bolt Hole Threads (R) mm - M10x1.5
S (mm) - 18.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
P - Polymer housing
SS - Stainless Steel Insert

** Images are for representation purposes only
