Description
Brand - DODGE
Item Number - 136744 DODGE - P2B-SCBEZ-40M-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 208
Shaft Size (mm) - 40
Description - P2B-SCBEZ-40M-PSS
Weight (kg) - 0.88

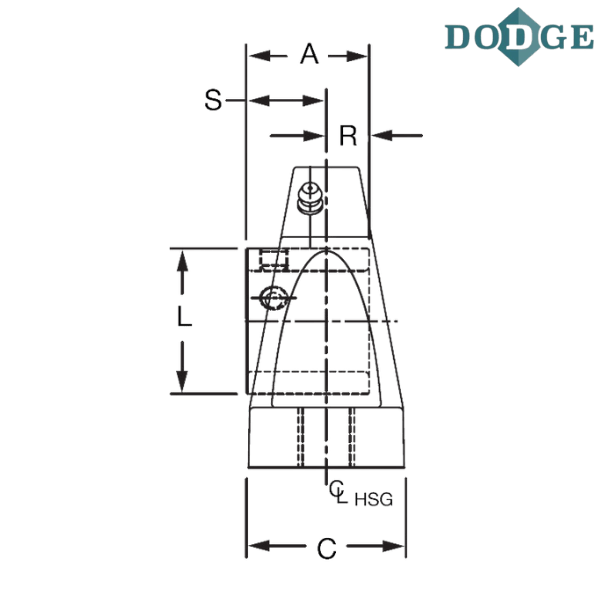

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 182.6
Overall Width (C) mm - 53.3
Bolt to Bolt Minimum Distance (D min) mm - 129.5
Bolt to Bolt Maximum Distance (D max) mm - 143.3
F Bolt Diameter - M12
Bolt Width (G) mm - 22.4
H (mm) - 19.3
Overall Height (J) mm - 105.7
L (mm) - 52.1
Base to Center Height (M) mm - 49.3
R (mm) - 19.1
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
BEZ - Low backing height pillow block, E-Z KLEEN/ULTRA KLEEN
M - Metric
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
