Description
Brand - DODGE
Item Number - 136704 DODGE - TB-SCEZ-012-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Tapped Base Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - TB-SCEZ-012-PSS
Weight (lbs) - 0.6

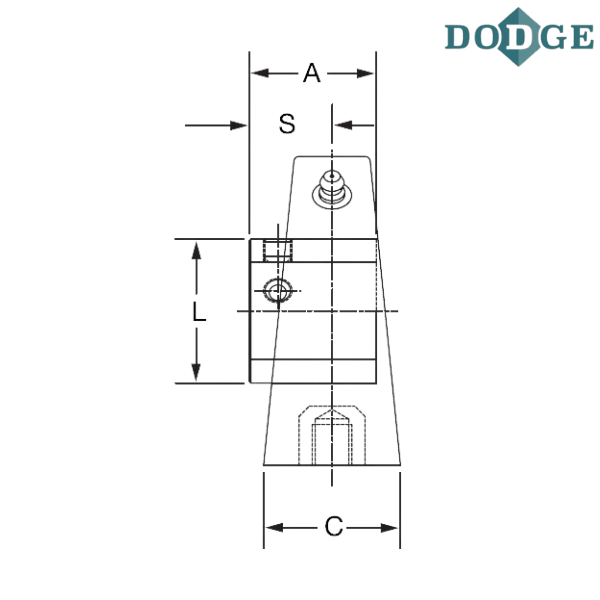

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 3.25
Overall Width (C) inch - 1.48
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.65
L (inch) - 1.11
Base to Center Height (M) inch - 1.31
Thread Depth (N) inch - 0.4
Bolt Hole Threads (R) inch - 0.375-16
S (inch) - 0.73
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
SS - Stainless Steel Insert
** Images are for representation purposes only
