136698 DODGE - P2B-SCUEZ-104S-PSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136698 DODGE - P2B-SCUEZ-104S-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 206
Shaft Size (inch) - 1.25
Description - P2B-SCUEZ-104S-PSS
Weight (lbs) - 1.11

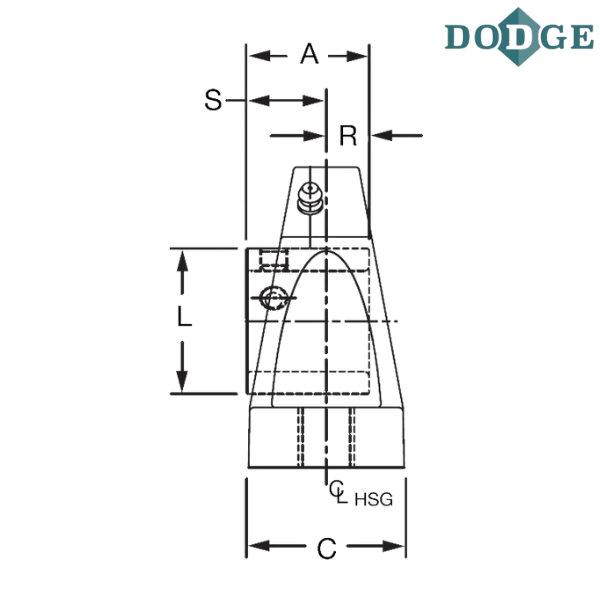

Length Through Bore (A) inch - 1.52
B (inch) - 6.3
C (inch) - 1.77
Bolt to Bolt Min (D min) inch - 4.6
Bolt to Bolt Max (D max) inch - 4.88
Bolt Diameter (F) inch - 0.5
G (inch) - 0.73
H (inch) - 0.7
J (inch) - 3.34
L (inch) - 1.57
Base to Center Height (M) inch - 1.69
R (inch) - 0.58
S (inch) - 0.94

Notes
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
UEZ - Higher back pillow block, E-Z KLEEN/ULTRA KLEEN (for interchangeability with competitive pillow blocks)
S - Next smaller ring size
P - Polymer housing
SS - Stainless Steel Insert

** Images are for representation purposes only
