136696 DODGE - P2B-SCEZ-100-PSS


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136696 DODGE - P2B-SCEZ-100-PSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 205
Shaft Size (inch) - 1
Description - P2B-SCEZ-100-PSS
Weight (lbs) - 0.69

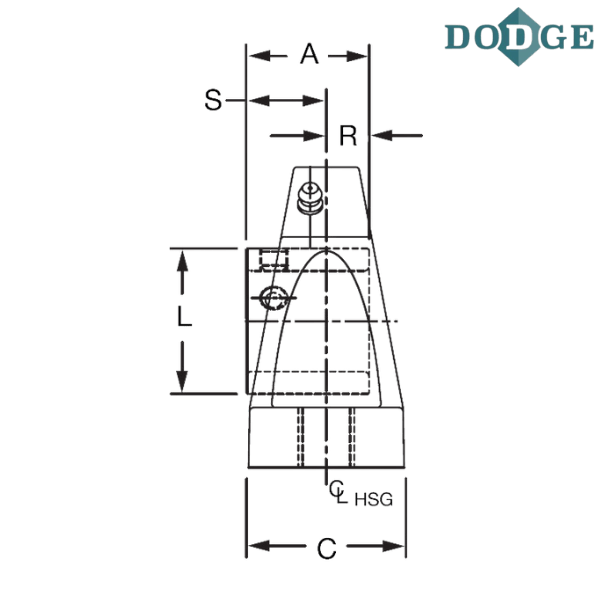

Length Through Bore (A) inch - 1.34
Overall Length (B) inch - 5.48
Overall Width (C) inch - 1.48
Bolt to Bolt Minimum Distance (D min) inch - 3.96
Bolt to Bolt Maximum Distance (D max) inch - 4.2
F-Bolt Diameter (inch) - 0.375
Bolt Width (G) inch - 0.59
H (inch) - 0.61
Overall Height (J) inch - 2.86
L (inch) - 1.32
Base to Center Height (M) inch - 1.44
R (inch) - 0.56
S (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
SS - Stainless Steel Insert

** Images are for representation purposes only
