Description
Brand - DODGE
Item Number - 127715 DODGE - P2B-DLEZ-012-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 204
Shaft Size (inch) - 0.75
Description - P2B-DLEZ-012-SHCR
Weight (lbs) - 1.46

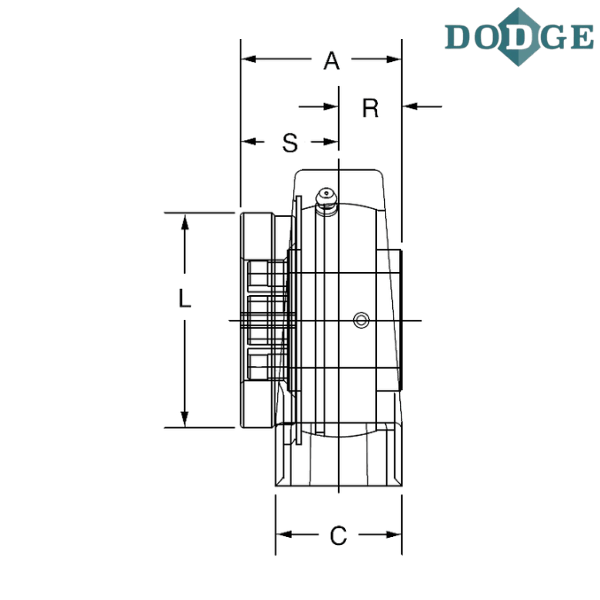

Length Through Bore (A) inch - 1.28
Overall Length (B) inch - 5
Width (C) inch - 1
Bolt to Bolt Minimum Distance (D min) inch - 3.38
Bolt to Bolt Maximum Distance (D max) inch - 4.18
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.84
H (inch) - 0.5
Overall Height (J) inch - 2.5
L (inch) - 1.71
Base to Center Height (M) inch - 1.31
R (inch) - 0.5
S (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
