127673 DODGE - P2B-SCUEZ-103-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127673 DODGE - P2B-SCUEZ-103-SHCR
Category - E-Z KLEEN Mounted Bearings With Corrosion Resistant Insert (SCEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 206 (SCU)
Shaft Size (inch) - 1.1875
Description - P2B-SCUEZ-103-SHCR
Description (Standard Insert with Flingers) - P2B-SCUEZ-103-SH
Weight (lbs) - 2.44

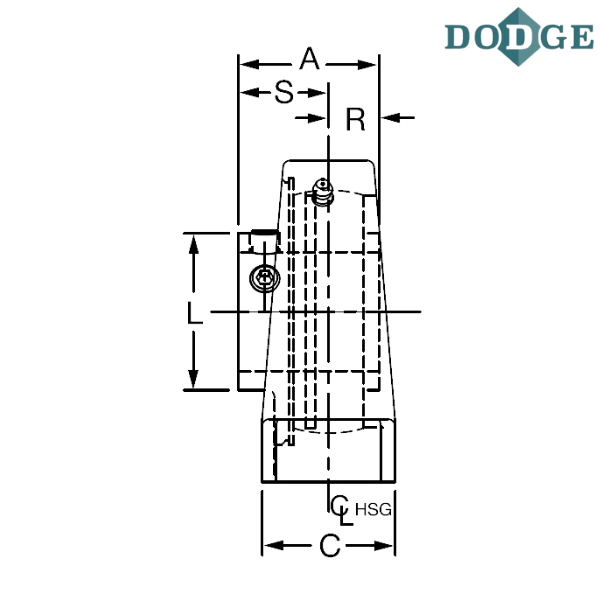

Length Through Bore (A) inch - 1.52
Overall Length (B) inch - 6.25
Width (C) inch - 1.25
Bolt to Bolt Minimum Distance (D min) inch - 4.26
Bolt to Bolt Maximum Distance (D max) inch - 5
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.93
H (inch) - 0.59
Overall Height (J) inch - 3.19
L (inch) - 1.57
Base to Center Height (M) inch - 1.69
R (inch) - 0.58
S (inch) - 0.94
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
UEZ - higher back pillow block, E-Z KLEEN/ULTRA KLEEN (for interchangeability with competitive pillow blocks)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
