Description
Brand - DODGE
Item Number - 056553 DODGE - P2B-SCEZ-014-SHCR
Category - E-Z KLEEN Mounted Bearings With Corrosion Resistant Insert (SCEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.875
Description - P2B-SCEZ-014-SHCR
Part Number (Standard Insert with Flingers) - 049996
Description (Standard Insert with Flingers) - P2B-SCEZ-014-SH
Weight (lbs) - 1.65

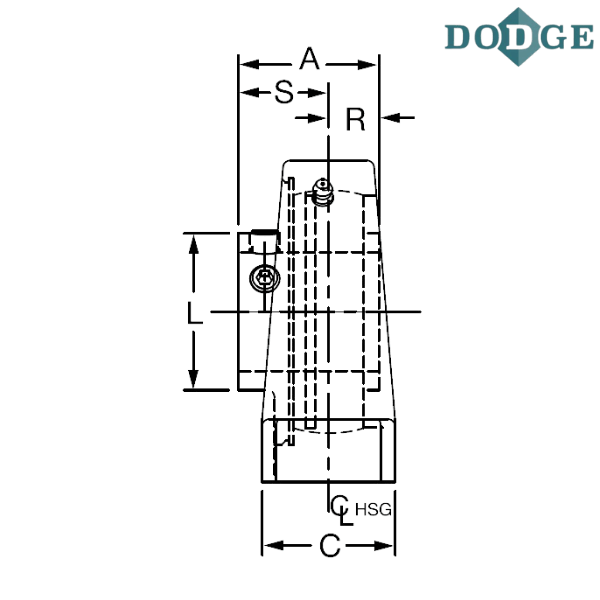

Length Through Bore (A) inch - 1.34
Overall Length (B) inch - 5.5
Width (C) inch - 1.12
Bolt to Bolt Minimum Distance (D min) inch - 3.68
Bolt to Bolt Maximum Distance (D max) inch - 4.5
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.85
H (inch) - 0.53
Overall Height (J) inch - 2.71
L (inch) - 1.32
Base to Center Height (M) inch - 1.44
R (inch) - 0.56
S (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
