049469 DODGE - P2B-DLBEZ-108-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 049469 DODGE - P2B-DLBEZ-108-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel Housed Pillow Blocks)
Series - 208 (DLB)
Shaft Size (inch) - 1.5
Description - P2B-DLBEZ-108-SHCR
Weight (lbs) - 4.85

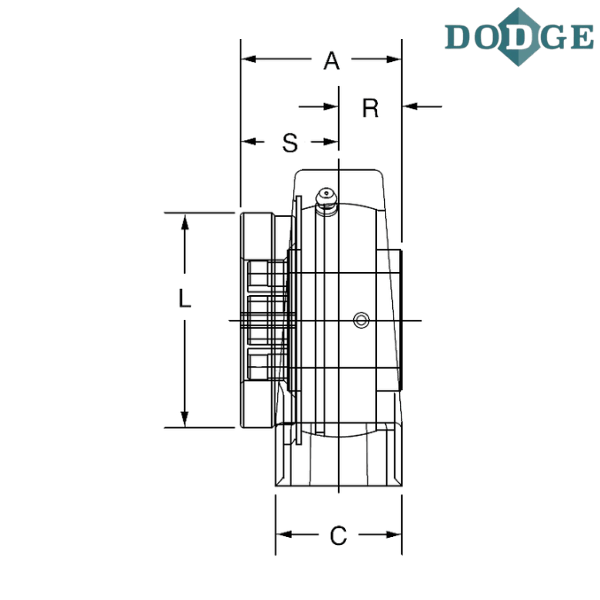

Length Through Bore (A) inch - 2.01
Overall Length (B) inch - 7
Width (C) inch - 1.5
Bolt to Bolt Minimum Distance (D min) inch - 5.18
Bolt to Bolt Maximum Distance (D max) inch - 6
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.97
H (inch) - 0.56
Overall Height (J) inch - 3.81
L (inch) - 2.74
Base to Center Height (M) inch - 1.94
R (inch) - 0.75
S (inch) - 1.26
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
BEZ - Low backing height pillow block, E-Z KLEEN/ULTRA KLEEN
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
