Description
Brand - BECO
Item Number - UC 211 BHTS ZZ 280° BECO
Category - Insert Bearing for Extreme Temperature
Bore Diameter (B) mm - 55
Outer Diameter (D) mm - 100
Dimension (A) mm - 23 ± 2
Dimension (A1) mm - 22.2
Dimension (A2) mm - 33.4
N - M10x1.25
Weight (kg) - 1.3
Limiting Speed (RPM) - 429
Static Load at 280°C (kN) - 20.7
Static Load at 20°C (kN) - 29.0

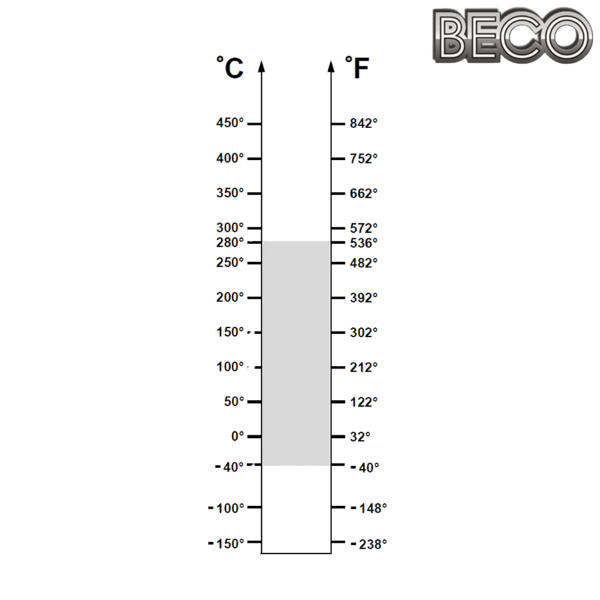

Operating Range - ‒40° / 280°C
Economic Operating Range - 200° / 280°C
---------------------------------------------------------
Bearing + Housing = Bearing Unit
---------------------------------------------------------
UC 211 BHTS ZZ 280° + F 211 SS = UCF 211 BHTS ZZ 280°
UC 211 BHTS ZZ 280° + FL 211 SS = UCFL 211 BHTS ZZ 280°
UC 211 BHTS ZZ 280° + P 211 SS = UCP 211 BHTS ZZ 280°
UC 211 BHTS ZZ 280° + T 211 SS = UCT 211 BHTS ZZ 280°
NOTE:
- Operating Range is the correct technical range in which can be used the bearing with good operating result
- Economic Operating Range is the range of temperature in which you can find, according to our study experience and know-how, the better relation price-quality-lifetime.
** Images are for representation purposes only
