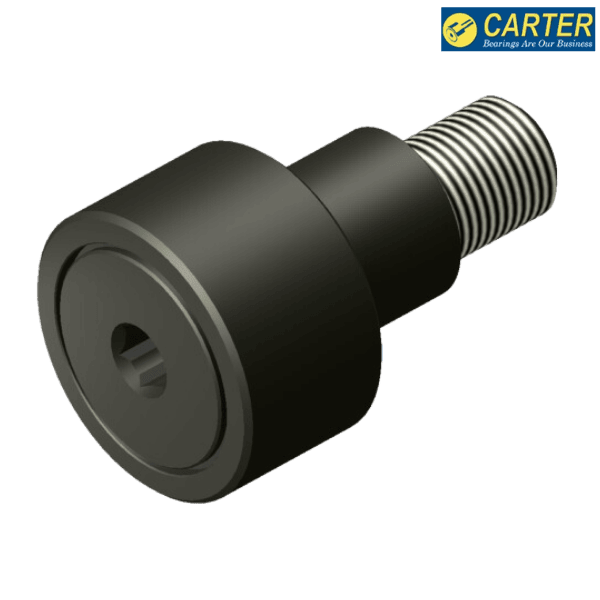

SFHE-32-A CARTER


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - CARTER
Item Number - SFHE-32-A CARTER
Category - Standard Neverlube Cam Follower Eccentric
Also Known As - SFWE-32-A

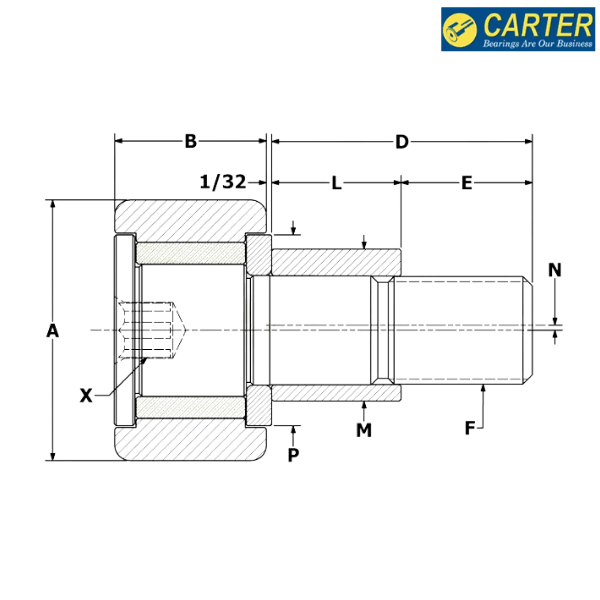

Imperial :
Roller Outer Diameter (A) inch - 1
Roller Width (B) inch - 0.625
Stud Length (D) inch - 1
M.E.T. (E) inch - 0.5
Thread Class 2A (F) inch - 7/16-20
Thread Diameter (inch) - 0.4375
Number of Threads per inch - 20
Hex Size (X) inch - 0.25
Bushing Length (L) inch - 0.5
Bushing Diameter (M) inch - 0.625
Eccentric Offset (N) inch - 0.03
Mounting Bore (inch) - 0.628
Torque (in-lb) * - 125
Load Factor - 0.25

Metric :
Roller Outer Diameter (A) mm - 25.4
Roller Width (B) mm - 15.875
Stud Length (D) mm - 25.4
M.E.T. (E) mm - 12.7
Hex Size (X) mm - 6.35
Bushing Length (L) mm - 12.7
Bushing Diameter (M) mm - 15.875
Eccentric Offset (N) mm - 0.762
Mounting Bore (mm) - 15.9512

Notes :
*Clamping torque is based on lubricated threads, if threads are dry, double the value listed

**Images are for representation purposes only
