Description
Brand - DODGE
Item Number - DODGE - SCHB-SXR-104
Category - Eccentric Collar Ball Bearings (SXR Normal Duty Screw Conveyor Hanger Bearings)
Series - 207
Shaft Size (inch) - 1.25
Description - SCHB-SXR-104
Weight (lbs) - 3.7

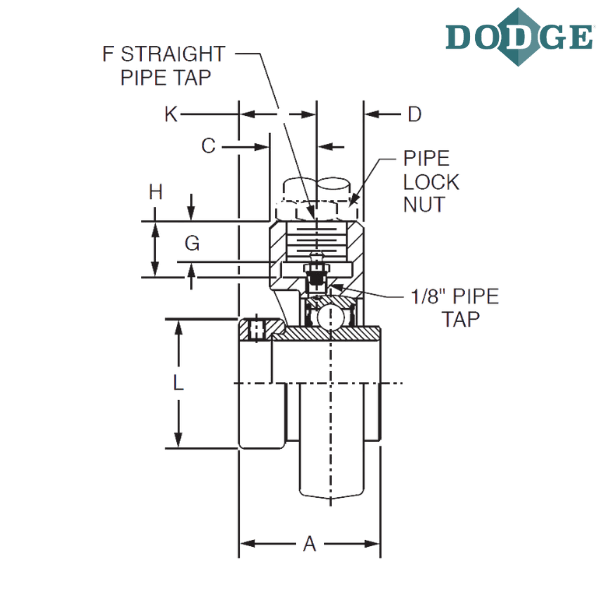

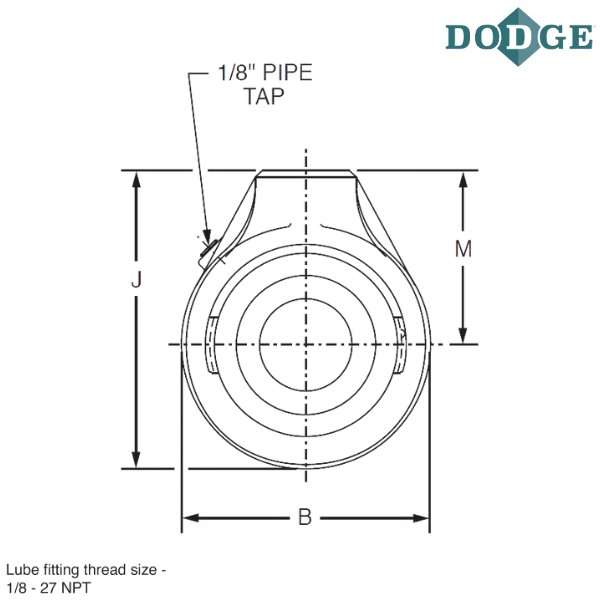

Length Through Bore (A) inch - 1.95
B (inch) - 3.88
C (inch) - 0.82
D (inch) - 0.82
F* (NPSM) inch - 0.75-14
G (inch) - 0.63
H (inch) - 0.94
Overall Length (J) inch - 4.69
K (inch) - 1.21
L (inch) - 2.13
M (inch) - 2.75
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
SCHB - Screw conveyor hanger bearing
SXR - Wide inner ring, normal duty, Eccentric locking Collar
* Use straight thread for the pipe. Bearing can be secured with a heavy locknut
** Images are for representation purposes only
