Description
Brand - DODGE

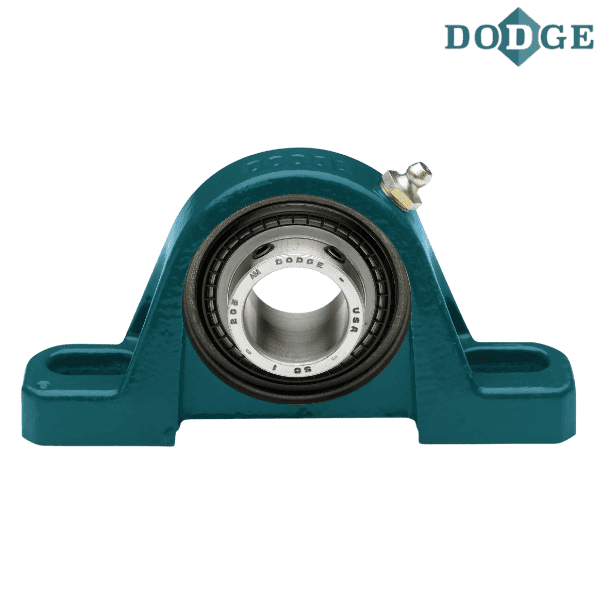

Item Number - DODGE - P2B-SCU-30M-HT
Category - High Temperature Setscrew Ball Bearing (Pillow Blocks)
Series - 206 (SCU)
Description - P2B-SCU-30M-HT
Shaft Size (mm) - 30
Weight (kg) - 1.1

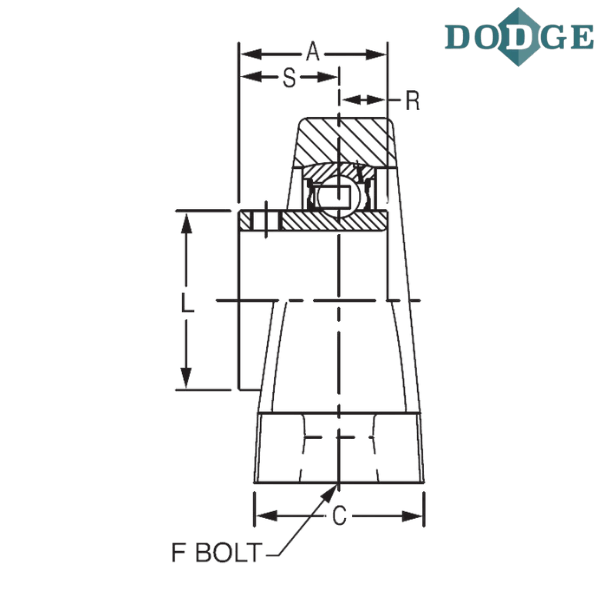

Length Through Bore (A) mm - 38.6
Overall Length (B) mm - 158.8
Width (C) mm - 44.5
Bolt to Bolt Minimum Distance (D min) mm - 108
Bolt to Bolt Maximum Distance (D max) mm - 127
F-Bolt Diameter - M12
G (mm) - 23.9
H (mm) - 19.1
Overall Height (J) mm - 84.1
L (mm) - 39.9
Base to Center Height (M) mm - 42.9
R (mm) - 14.7
S (mm) - 23.9

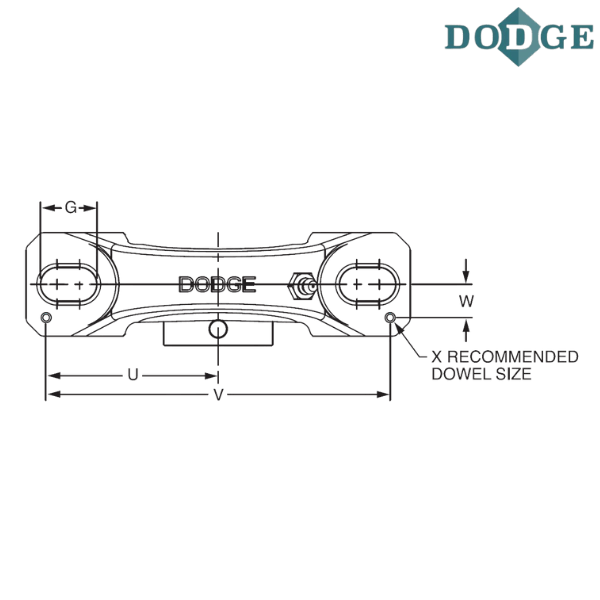

U (mm) - 73.2
V (mm) - 146.3
W (mm) - 14.2
X (mm) - 3
Notes :
P2B - 2-bolt base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
U - Higher back pillow block (for interchangeability with competitor pillow blocks)
M - Metric
HT - High Temperature
Lubricants - Lithium Complex Base Lubricant
Seals - The PROGUARD PLUS Seal
High Temperature - 225°F(108°C) to 400°F(205°C)
Air Handling - Supports for SC and SCM Air Handling Pillow Blocks and Flage Bearing
Housing Material - Stainless Steel and polymar Coatings conform to U.S.D.A. and F.D.A. requirement.
** Images are for representation purposes only
