Description
Brand - DODGE
Item Number - DODGE - P2B-DLEZ-014-PCR
Category - E-Z KLEEN Mounted Bearings (DLEZ Normal Duty Polymer Housed Pillow Blocks)
Series - 205
Shaft Size (inch) - 0.875
Description - P2B-DLEZ-014-PCR
Description (Standard Insert With Flingers) - P2B-DLEZ-014-P
Weight (lbs) - 1.32

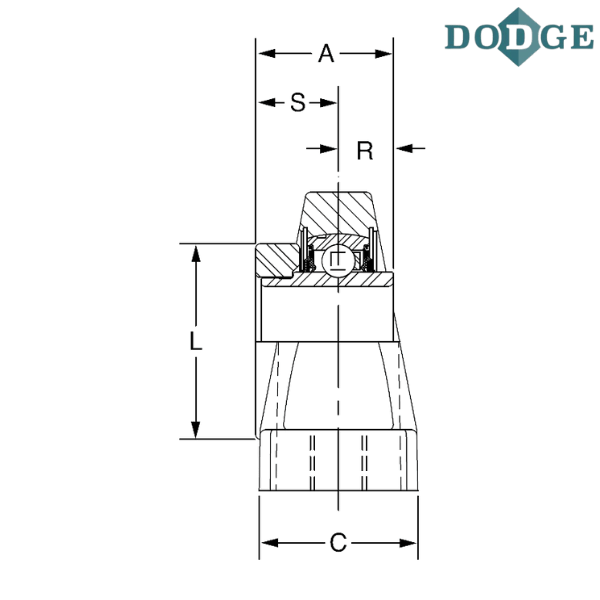

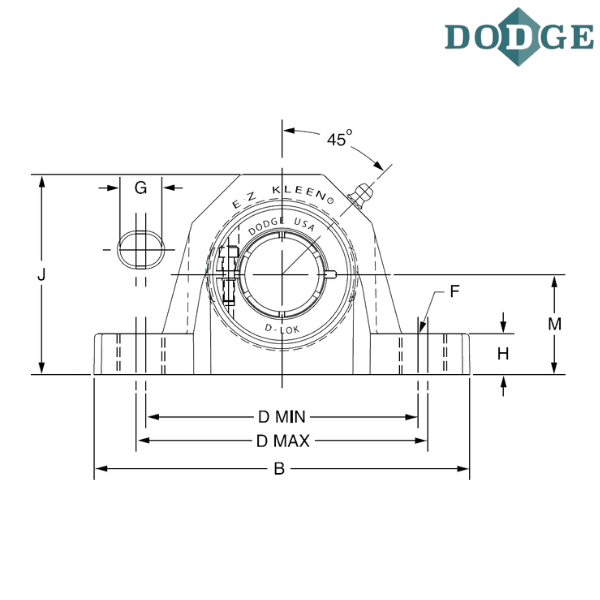

Length Through Bore (A) inch - 1.44
Overall Length (B) inch - 5.48
Width (C) inch - 1.48
Bolt to Bolt Minimum Distance (D min) inch - 3.96
Bolt to Bolt Maximum Distance (D max) inch - 4.2
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.59
H (inch) - 0.61
Overall Height (J) inch - 2.86
L (inch) - 1.99
Base to Center Height (M) inch - 1.44
R (inch) - 0.56
S (inch) - 0.88
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
P - Polymer housing
CR - Corrosion resistant insert

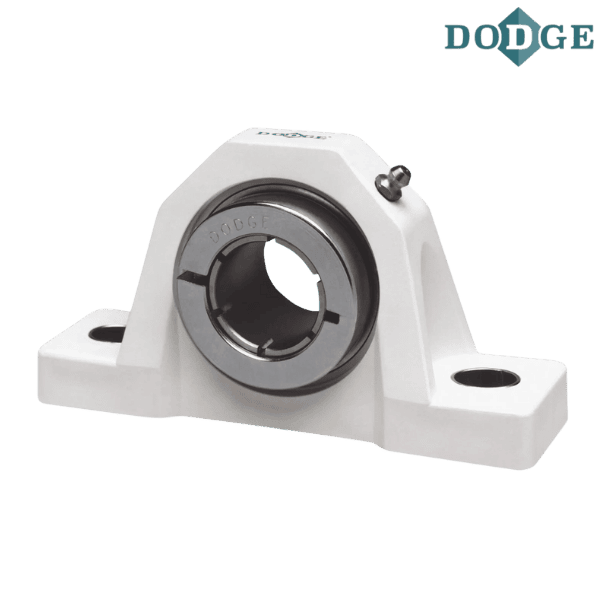

** Images are for representation purposes only
