Description
Brand - DODGE
Item Number - DODGE - F4B-DLEZ-102-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - F4B-DLEZ-102-SHCR
Weight (lbs) - 2.41

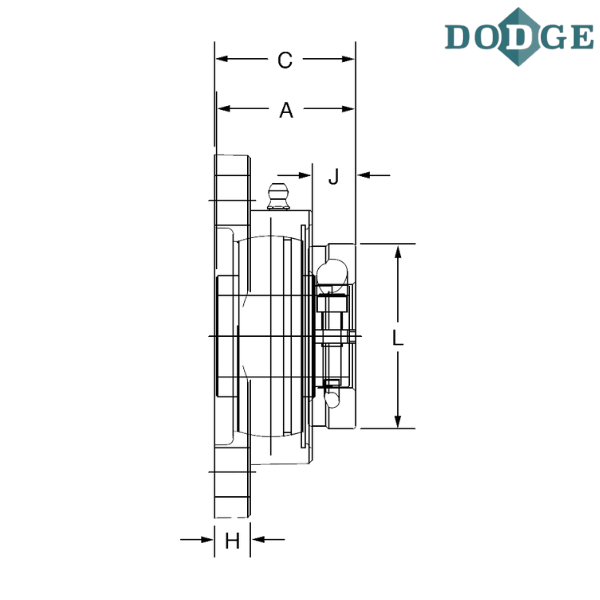

Length Through Bore (A) inch - 1.56
Overall Length (B) inch - 4.16
Thickness (C) inch - 1.63
Bolt Center to Center Length (D) inch - 3.24
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.37
J (inch) - 0.5
L (inch) - 2.22
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F4B - 4-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
