DODGE - F2BZ-SXR-102


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - DODGE - F2BZ-SXR-102
Category - Eccentric Collar Ball Bearings (SXR Normal Duty 2-Bolt Piloted Flange Bearings)
Series - 206
Shaft Size (inch) - 1.125
Description - F2BZ-SXR-102
Weight (lbs) - 2.1

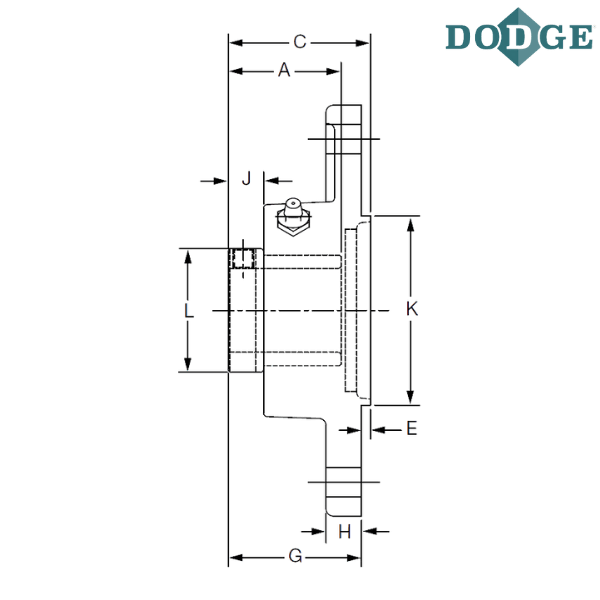

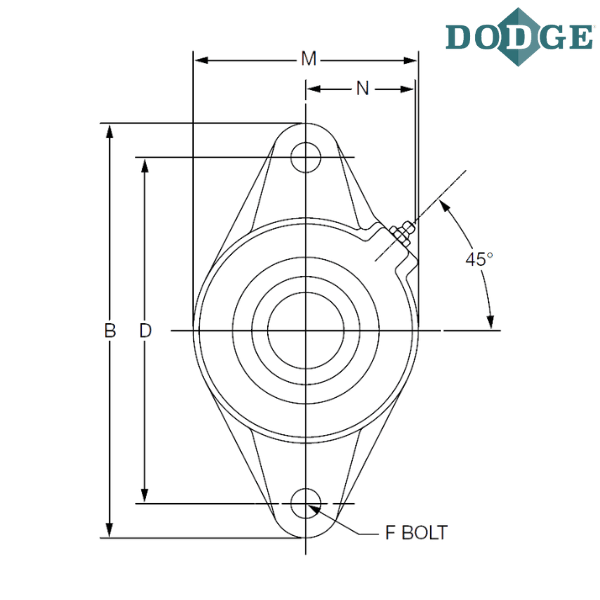

Length Through Bore (A) inch - 1.77
Overall Length (B) inch - 5.56
Thickness (C) inch - 1.92
Bolt Center to Center Length (D) inch - 4.59
Pilot Depth (E) inch - 0.12
F-Bolt Diameter (inch) - 0.4375
G (inch) - 1.81
H (inch) - 0.5
J (inch) - 0.74
Pilot Diameter (K) inch - 3.150/3.148
L (inch) - 1.75
M (inch) - 3.13
N (inch) - 1.56
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F2BZ - 2 bolt flange with pilot machined on the back side
SXR - Wide inner ring, normal duty, Eccentric locking Collar

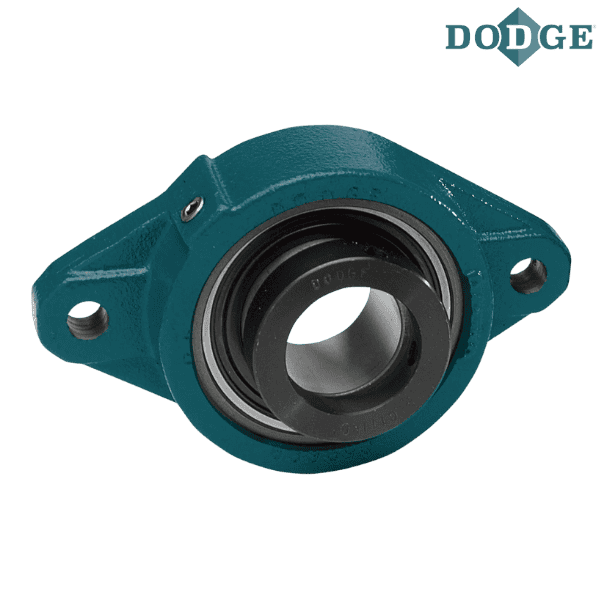

** Images are for representation purposes only
