Description
Brand - DODGE
Item Number - 136971 DODGE - LFT-SCEZ-25M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 205
Shaft Size (mm) - 25
Description - LFT-SCEZ-25M-SHCR
Weight (kg) - 0.38

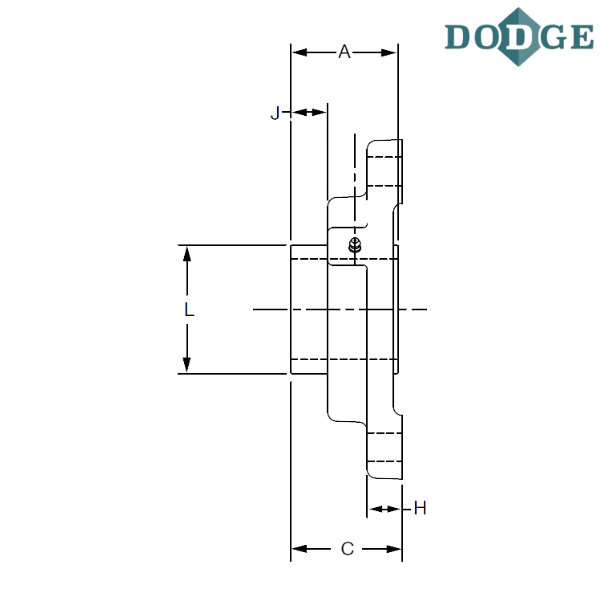

Length Through Bore (A) mm - 26.8
Overall Length (B) mm - 95.3
Thickness (C) mm - 34.1
Bolt Center to Center Length (D) mm - 76.2
G (mm) - 8.6
H (mm) - 12.7
J (mm) - 9.5
L (mm) - 33.5
M (mm) - 66.8
N (mm) - 36.6
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
LFT - 5 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
