Description
Brand - DODGE
Item Number - 136960 DODGE - TB-SCEZ-50M-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ TB SHCR Normal Duty Stainless Steel Tapped Base Bearings)
Series - 210
Shaft Size (mm) - 50
Description - TB-SCEZ-50M-SHCR
Weight (kg) - 2.53

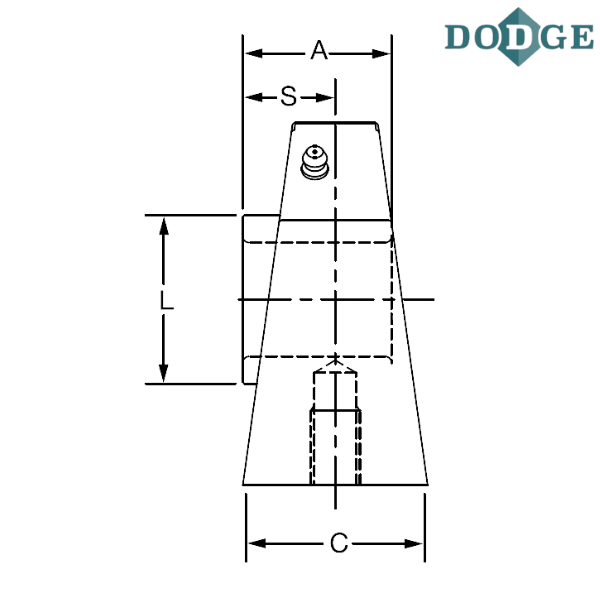

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 136.4
Width (C) mm - 48.8
Bolt Center to Center Length (D) mm - 101.6
Overall Height (J) mm - 113.5
L (mm) - 61.7
Base to Center Height (M) mm - 57.2
N (mm) - 31.8
R (mm) - 0.625-11
S (mm) - 30.2
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
