136931 DODGE - LF-SCEZ-104-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136931 DODGE - LF-SCEZ-104-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Housed 2-Bolt Flange Bearings)
Series - 207
Shaft Size (inch) - 1.25
Description - LF-SCEZ-104-SHCR
Weight (lbs) - 1.73

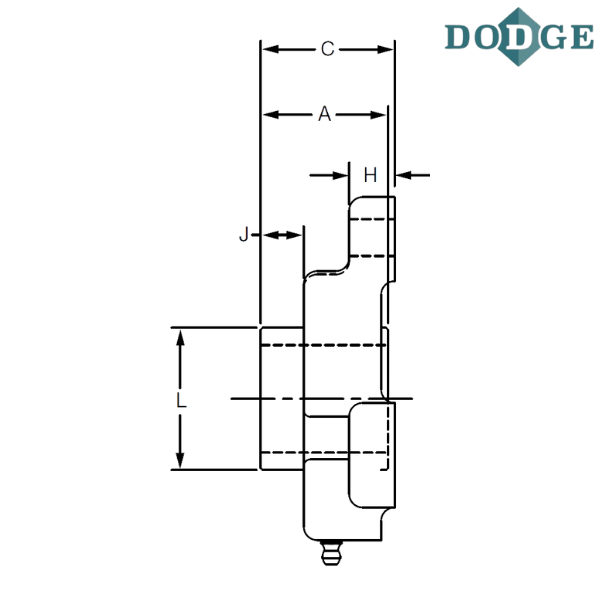

Length Through Bore (A) inch - 1.4
Width (B) inch - 4.81
Thickness (C) inch - 1.73
Bolt Center to Center Length (D) inch - 3.94
G (inch) - 0.41
H (inch) - 0.67
J (inch) - 0.53
L (inch) - 1.84
M (inch) - 2.41
N (inch) - 2.09
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
LF - 3 bolt, light duty flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
