136920 DODGE - FB-SCEZ-012-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136920 DODGE - FB-SCEZ-012-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ SHCR Normal Duty Stainless Steel Flange Bracket Bearings)
Series - 204
Shaft Size (inch) - 0.75
Description - FB-SCEZ-012-SHCR
Weight (lbs) - 1

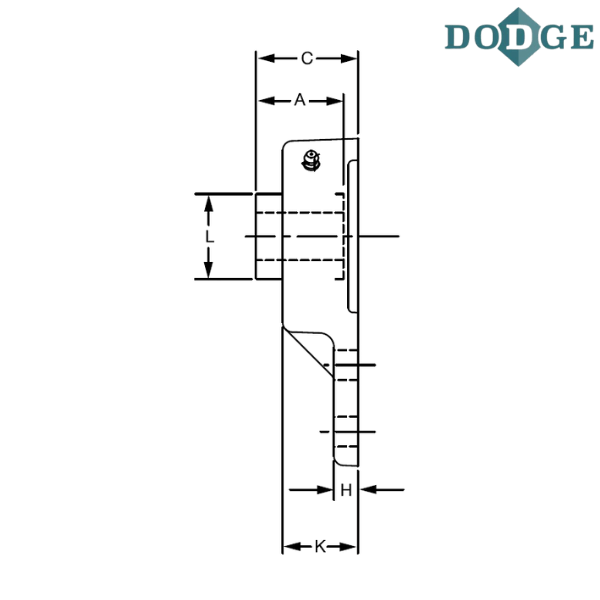

Length Through Bore (A) inch - 1.23
Overall Length (B) inch - 4.19
Thickness (C) inch - 1.25
Bolt Center to Center Length (D) inch - 1.5
E (inch) - 1.69
F-Bolt Diameter (inch) - 0.375
G (inch) - 0.88
H (inch) - 0.31
I (inch) - 3
Overall Width (J) inch - 2.38
K (inch) - 0.9
L (inch) - 1.12
M (inch) - 2.38
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
FB - Flanged bracket
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
