136917 DODGE - TB-SCEZ-107-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 136917 DODGE - TB-SCEZ-107-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ TB SHCR Normal Duty Stainless Steel Tapped Base Bearings)
Series - 207
Shaft Size (inch) - 1.4375
Description - TB-SCEZ-107-SHCR
Weight (lbs) - 4.21

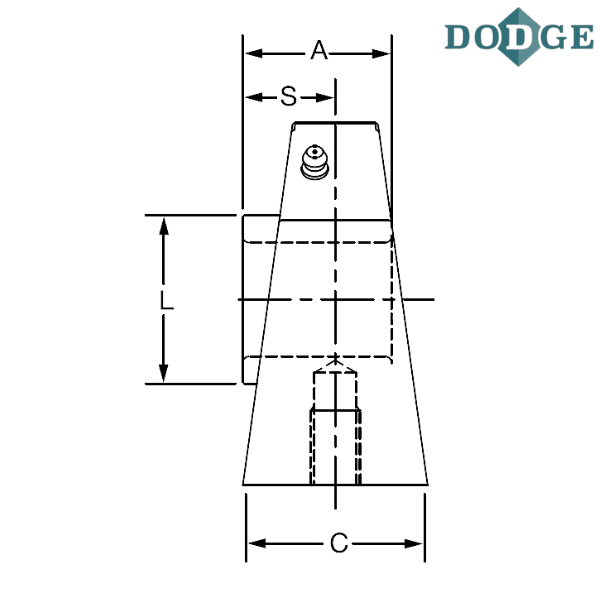

Length Through Bore (A) inch - 1.71
Overall Length (B) inch - 4.15
Width (C) inch - 1.77
Bolt Center to Center Length (D) inch - 3.25
Overall Height (J) inch - 3.66
L (inch) - 1.84
Base to Center Height (M) inch - 1.88
N (inch) - 0.75
R (inch) - 0.5-13
S (inch) - 1.04
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
