Description
Brand - DODGE
Item Number - 136913 DODGE - TB-SCEZ-100-SHCR
Category - E-Z Kleen Mounted Bearings (SCEZ TB SHCR Normal Duty Stainless Steel Tapped Base Bearings)
Series - 205
Shaft Size (inch) - 1
Description - TB-SCEZ-100-SHCR
Weight (lbs) - 1.48

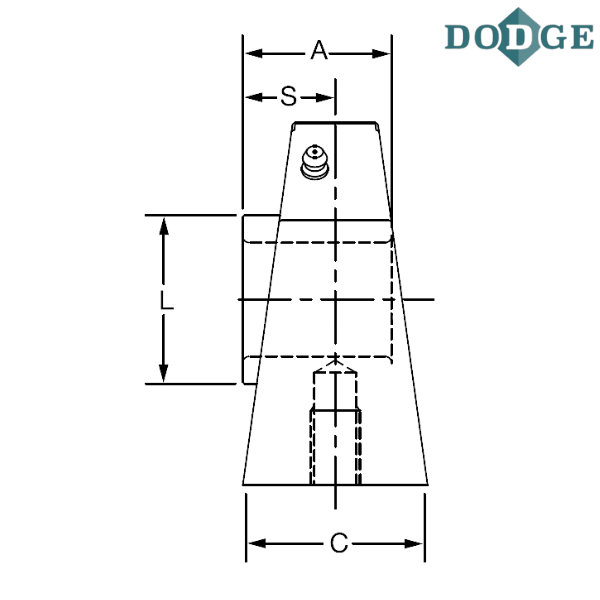

Length Through Bore (A) inch - 1.34
Overall Length (B) inch - 3.06
Width (C) inch - 1.39
Bolt Center to Center Length (D) inch - 2
Overall Height (J) inch - 2.75
L (inch) - 1.32
Base to Center Height (M) inch - 1.44
N (inch) - 0.45
R (inch) - 0.375-16
S (inch) - 0.78
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
TB - Tapped base pillow block
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
