Description
Brand - DODGE
Item Number - 136779 DODGE - P2B-SCEZ-104-SHSS
Category - Ultra Kleen Mounted Bearings With Stainless Steel Insert (SCEZ PSS Normal Duty Polymer Housed Pillow Blocks)
Series - 207
Shaft Size (inch) - 1.25
Description - P2B-SCEZ-104-SHSS
Weight (lbs) - 3.36

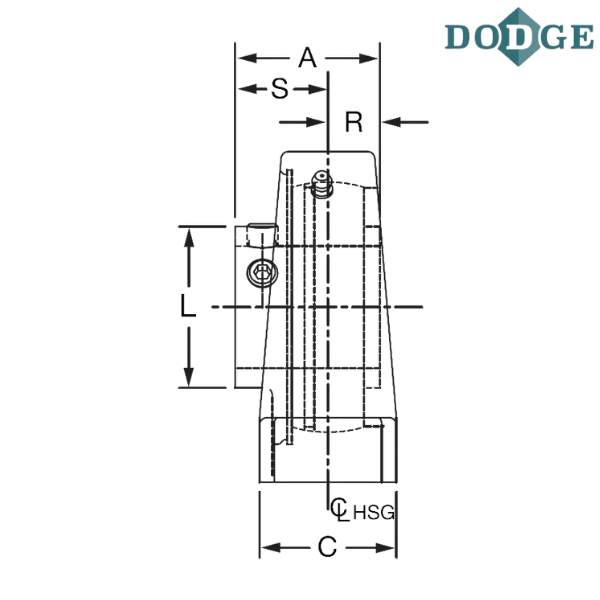

Length Through Bore (A) inch - 1.71
Overall Length (B) inch - 6.5
Overall Width (C) inch - 1.38
Bolt to Bolt Minimum Distance (D min) inch - 4.68
Bolt to Bolt Maximum Distance (D max) inch - 5.44
F-Bolt Diameter (inch) - 0.5
Bolt Width (G) inch - 0.94
H (inch) - 0.56
Overall Height (J) inch - 3.63
L (inch) - 1.84
Base to Center Height (M) inch - 1.88
R (inch) - 0.67
S (inch) - 1.04
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow block, 2 bolt base
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
SH - Stainless Steel Housing
SS - Stainless Steel Insert
** Images are for representation purposes only
