Description
Brand - DODGE
Item Number - 127749 DODGE - F2B-DLEZ-40M-SHCR
Category - E-Z Kleen Mounted Bearings (DLEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Series - 208
Shaft Size (mm) - 40
Description - F2B-DLEZ-40M-SHCR
Weight (kg) - 1.77

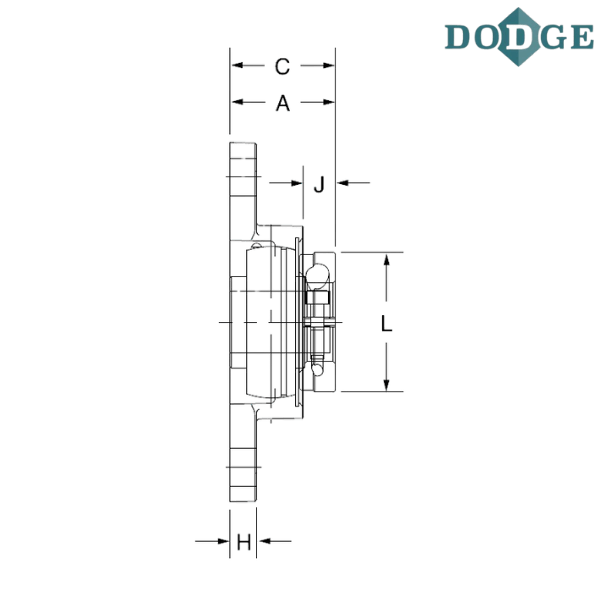

Length Through Bore (A) mm - 51.1
Overall Length (B) mm - 170.4
Thickness (C) mm - 52.1
Bolt Center to Center Length (D) mm - 143.5
F-Bolt Diameter - M12
H (mm) - 10.7
J (mm) - 17.8
L (mm) - 69.6
Overall Width (M) mm - 97.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
DL - Wide inner ring, normal duty, concentric clamp collar
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
