127714 DODGE - F4B-SCEZ-50M-SHCR


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 127714 DODGE - F4B-SCEZ-50M-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 4-Bolt Flange Bearings)
Series - 210
Shaft Size (mm) - 50
Description - F4B-SCEZ-50M-SHCR
Description (With Insert With Flingers) - F4B-SCEZ-50M-SH
Weight (kg) - 2.07

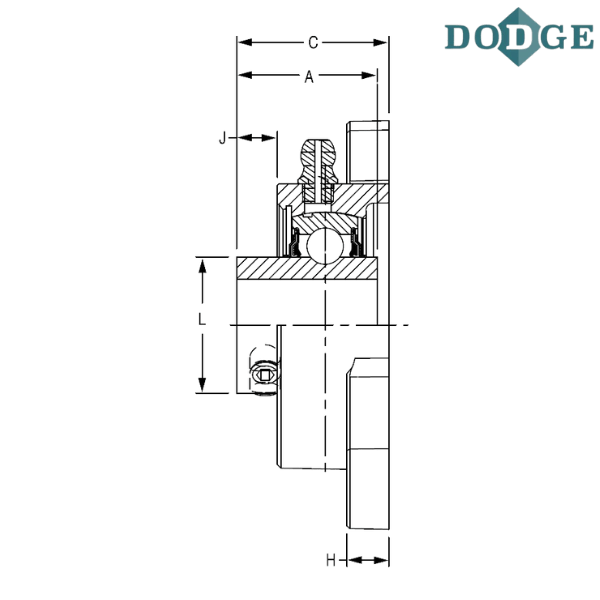

Length Through Bore (A) mm - 49.3
Overall Length (B) mm - 144
Thickness (C) mm - 50.3
Bolt Center to Center Length (D) mm - 111
F-Bolt Diameter - M16
H (mm) - 12.4
J (mm) - 15.7
L (mm) - 61.7
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
F4B - 4-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert

** Images are for representation purposes only
