Description
Brand - DODGE
Item Number - 127704 DODGE - F2B-SCEZ-25M-SHCR
Category - E-Z KLEEN Mounted Bearings (SCEZ Normal Duty Stainless Steel 2-Bolt Flange Bearings)
Shaft Size (mm) - 25
Description - F2B-SCEZ-25M-SHCR
Description (With Corrosion Resistant Insert) - F2B-SCEZ-25M-SH
Weight (kg) - 0.55

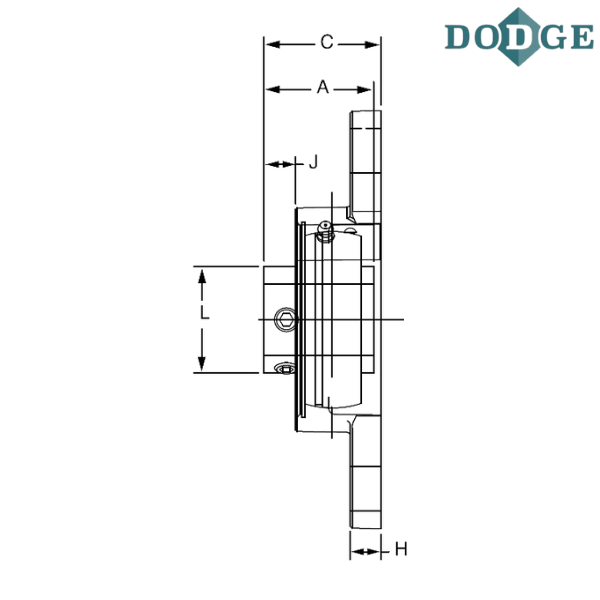

Length Through Bore (A) mm - 34
Overall Length (B) mm - 124.2
Thickness (C) mm - 34.8
Bolt Center to Center Length (D) mm - 98.8
F-Bolt Diameter - M10
H (mm) - 8.9
J (mm) - 9.9
L (mm) - 33.5
Overall Width (M) mm - 66.8
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
F2B - 2-bolt flange
SC - Wide inner ring, normal duty, 65° setscrew locking
EZ - E-Z KLEEN/ULTRA KLEEN (used with polymer or stainless steel housed units)
M - Metric
SH - Stainless Steel Housing
CR - Corrosion resistant insert
** Images are for representation purposes only
