Description
Brand - DODGE
Item Number - 089784 DODGE - TS-100X9-TUFR
Category - Telescoping (TS) Take-Up Frame
Description - TS-100X9-TUFR
Frame Size - TS-100
Take-Up Frame Travel (inch) - 9
Weight (lbs) - 5
Overall Length (B) inch - 15.44
C (inch) - 3.69
Bolt Center-to-Center Length of F-Bolt (D) inch - 11.06
Bolt Center-to-Center Width (E) inch - 2.63
F-Bolt Diameter (inch) - 0.5
K (inch) - 0.88
L (inch) - 1.50
O (inch) - 1.50
Q (inch) - 1.50
R (inch) - 6.38

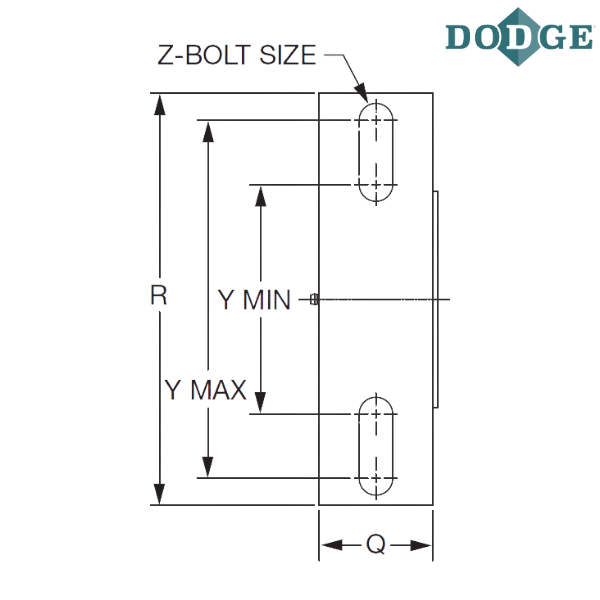

S Screw Diameter (inch) - 0.625
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 2.94
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 5.44
Z-Bolt Dianeter (inch) - 0.5
Notes :
TS - Telescoping (TS) Take-Up Frame
100 - Frame Size Designation
9 - Inches of Travel
TUFR - Take-Up Frame
