Description
Brand - DODGE
Item Number - 038929 DODGE - LD-50x30-TUFR
Category - LD Protected Screw Take-Up Frame
Frame Size x Travel - LD-50x30
Description - LD-50x30-TUFR
Weight (lbs) - 71

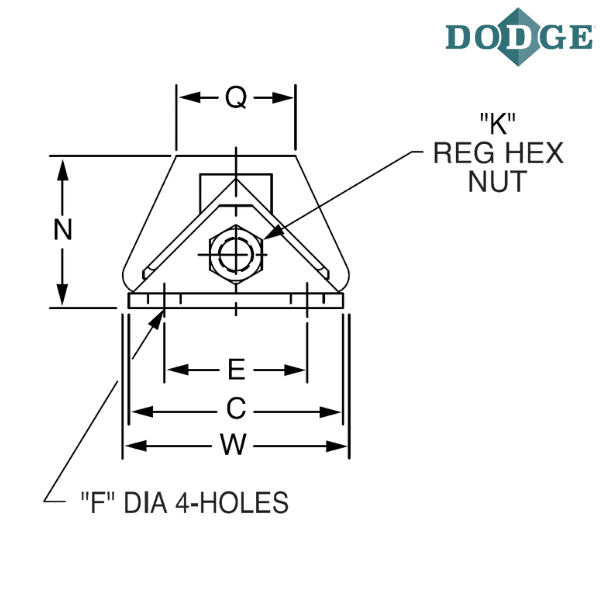

Overall Length (B) inch - 51.25
C (inch) - 5
Bolt Center-to-Center Length of F-Bolt (D) inch - 49.5
Bolt Center-to-Center Width (E) inch - 3
F-Bolt Diameter (inch) - 0.75
H (inch) - 0.3125
J (inch) - 1.5625
K (inch) - 0.6875
L (inch) - 9.75
Overall Height (N) inch - 4.125
O (inch) - 2.5
P (inch) - 13.5
Q (inch) - 3.5
R (inch) - 13
S Screw Diameter (inch) - 1
W (inch) - 5.875
X (inch) - 1.25
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 11.125
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 7.625
Z-Bolt Dianeter (inch) - 7/8 x 4
Angle - 3 x 3 x 1/2
Notes :
LD - Light Duty Protected Screw Take-Up Frame
50 - Frame Size Designation
30 - Inches of Travel
TUFR - Take-Up Frame

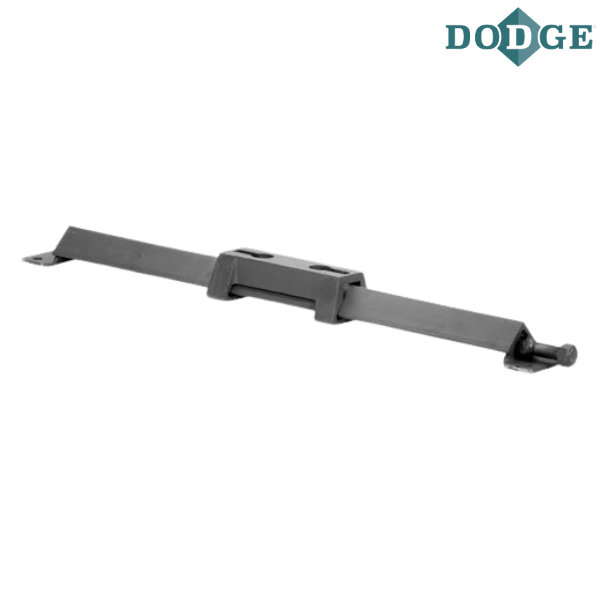

** Images are for representation purposes only
