Description
Brand - DODGE
Item Number - 038911 DODGE - LD-10x18-TUFR
Category - LD Protected Screw Take-Up Frame
Frame Size x Travel - LD-10x18
Description - LD-10x18-TUFR
Weight (lbs) - 14
Overall Length (B) inch - 31
C (inch) - 3.75
Bolt Center-to-Center Length of F-Bolt (D) inch - 29.5

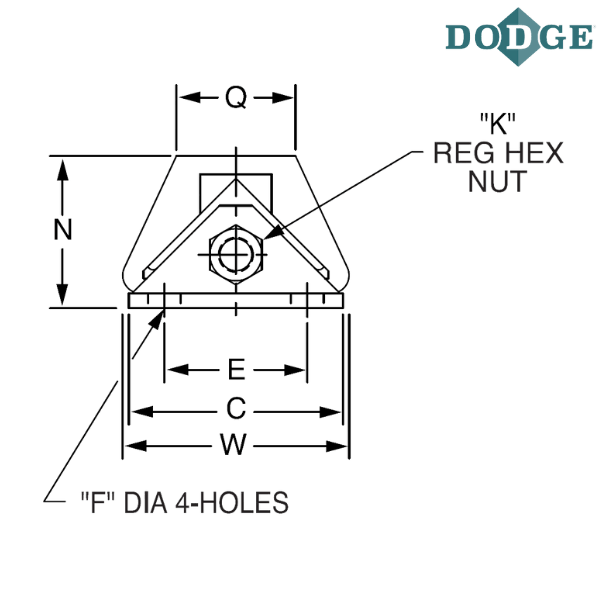

Bolt Center-to-Center Width (E) inch - 2.5
F-Bolt Diameter (inch) - 0.375
H (inch) - 0.25
J (inch) - 0.5625
K (inch) - 0.5625
L (inch) - 5.75
Overall Height (N) inch - 2.75
O (inch) - 2.125
P (inch) - 5.875
Q (inch) - 1.5
R (inch) - 5.375
S Screw Diameter (inch) - 0.75
W (inch) - 3.25
X (inch) - 0.9375
Maximum Bolt to Bolt Distance of Z-Bolt (Y max) inch - 4.375
Minimum Bolt to Bolt Distance of Z-Bolt (Y min) inch - 2.875
Z-Bolt Dianeter (inch) - 3/8 x 1-1/2
Angle - 2 x 2 x 1/4
Notes :
LD - Light Duty Protected Screw Take-Up Frame
10 - Frame Size Designation
18 - Inches of Travel
TUFR - Take-Up Frame

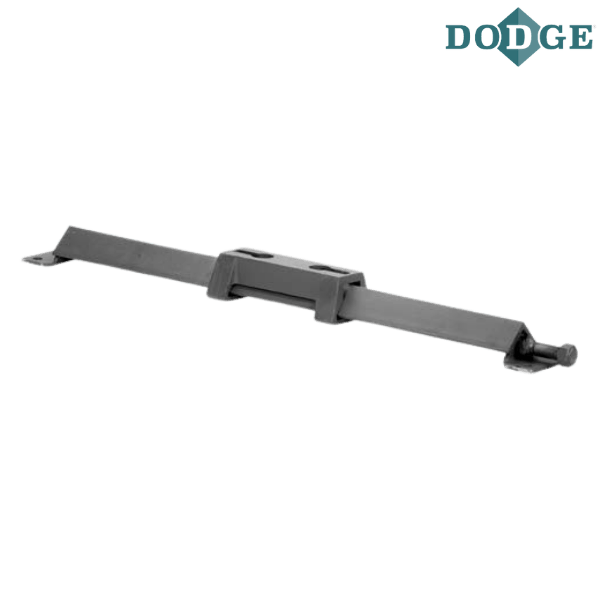

** Images are for representation purposes only
