Description
Brand - DODGE
Item Number - 036199 DODGE - TUB-203-TUBRG
Category - Type B Take-Up Bearing
Possible Shaft Size x Travel - 2.1875 x 9, 2.1875 x 18
Description - TUB-203-TUBRG
Weight (lbs) - 12.7

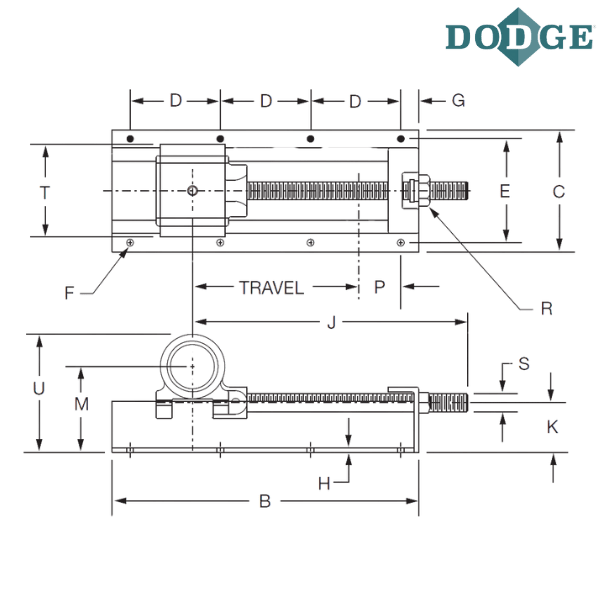

A (inch) - 4.875
B (inch) - 17 to 26
C (inch) - 6.75
D (inch) - 56
E (inch) - 5.75
F-Bolt Number - 810
F-Bolt Diameter (inch) - 0.375
G (inch) - 11
H (inch) - 0.25
For Shaft Size x Travel (2.1875 x 9) Dimension of J (inch) - 14.5
For Shaft Size x Travel (2.1875 x 18) Dimension of J (inch) - 23.5
K (inch) - 2.75
M (inch) - 4.75
P (inch) - 3.125
Hex Size (R) inch - 1.625
S (inch) - 1
T (inch) - 5.125
U (inch) - 6.53125
Grease Cup (Pipe Tap) - 0.25
Grease Cup (Size) - 1
Notes :
TUB - Type B Babbitted Take-Up Bearing

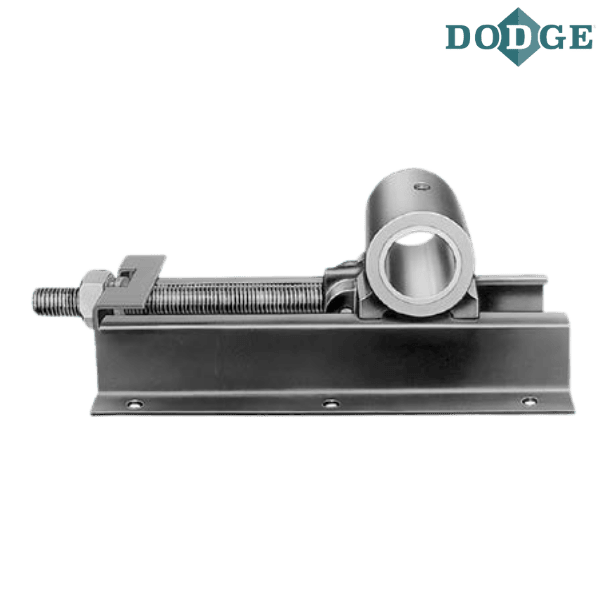

** Images are for representation purposes only
