Description
Brand - DODGE

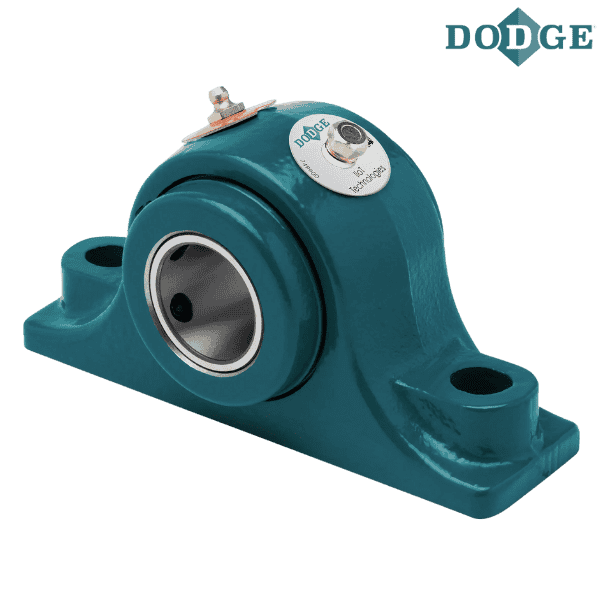

Item Number - 023048 DODGE - SP2B-E-104R
Category - 2-Bolt Base Type E-Xtra Pillow Block - Inch (Cast Steel)
Shaft Size (inch) - 1.25
Part Name - SP2B-E-104R
Approximate Weight (lbs) - 4

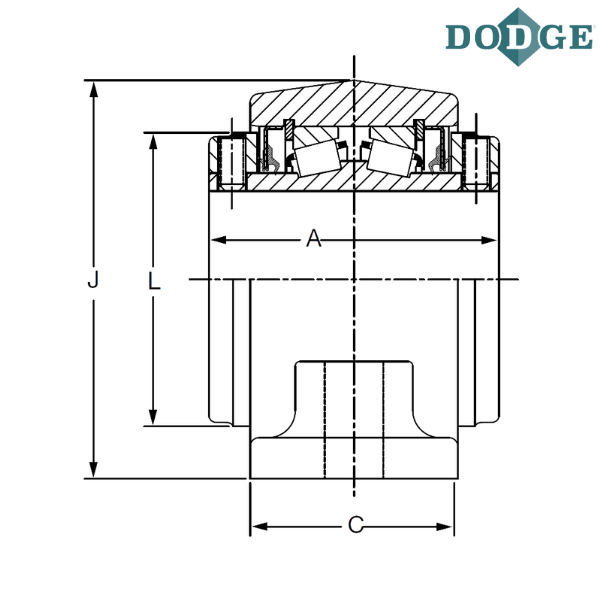

Length Through Bore (A) inch - 2.75

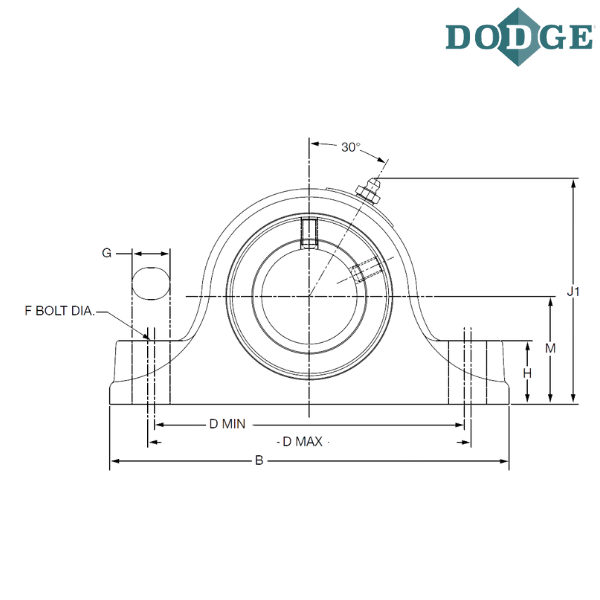

Overall Length (B) inch - 6
Width (C) inch - 1.88
Bolt to Bolt Minimum Distance (D min) inch - 4.75
Bolt to Bolt Maximum Distance (D max) inch - 4.81
F-Bolt Diameter (inch) - 0.5
G (inch) - 0.59
H (inch) - 0.88
J (inch) - 3
Overall Height (J1) inch - 3.28
L (inch) - 2.25
Base to Center Height (M) inch - 1.5
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
SP2B - Pillow Block 4-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
