023040 DODGE - P4B-E-507R


Country Of Origin: USA
Price:
Sale price₹ 100.00 Regular price₹ 200.00

Download data sheet

Description

Brand - DODGE
Item Number - 023040 DODGE - P4B-E-507R
Category - 4-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 5.4375
Part Name - P4B-E-507R
Approximate Weight (lbs) - 230

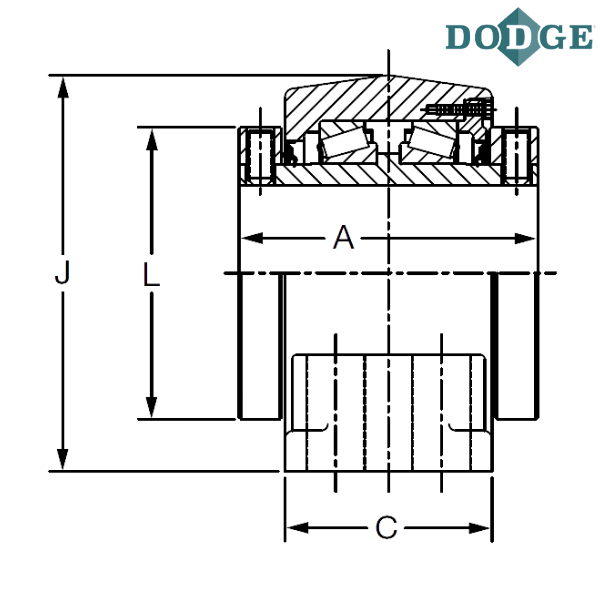

Length Through Bore (A) inch - 9

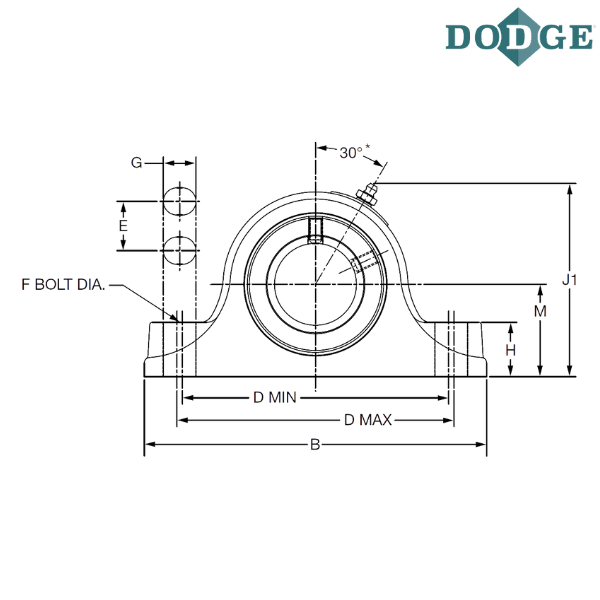

Overall Length (B) inch - 22
C (inch) - 6.25
Bolt to Bolt Minimum Distance (D min) inch - 17.38
Bolt to Bolt Maximum Distance (D max) inch - 19.13
Bolt Width (E) inch - 3.75
F-Bolt Diameter (inch) - 1
G (inch) - 2
H (inch) - 3.25
Overall Height (J) inch - 13.19
L (inch) - 9.38
Base to Center Height (M) inch - 6.69
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request

Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal

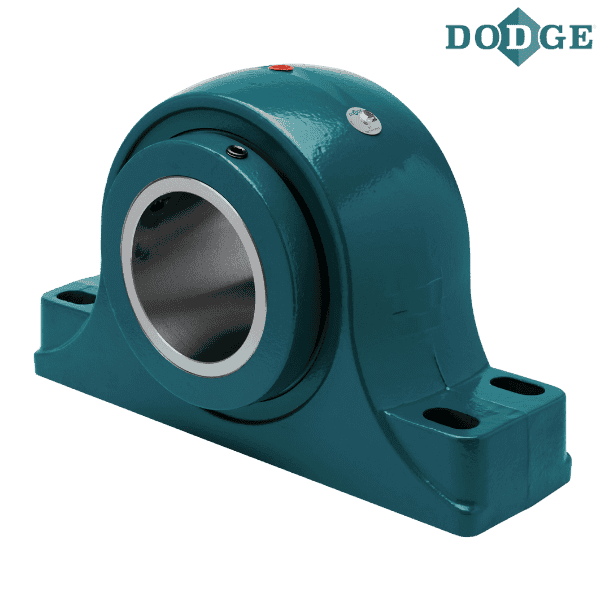

** Images are for representation purposes only
