Description
Brand - DODGE
Item Number - 023015 DODGE - P2B-E-211R
Category - 2-Bolt Base Type E-Xtra Pillow Block - Inch (Gray Iron)
Shaft Size (inch) - 2.6875
Part Name - P2B-E-211R
Approximate Weight (lbs) - 29

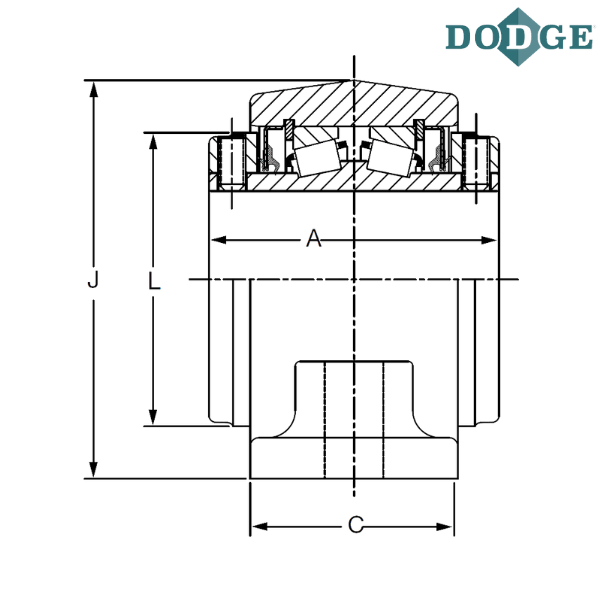

Length Through Bore (A) inch - 4.5
Overall Length (B) inch - 12
Width (C) inch - 3

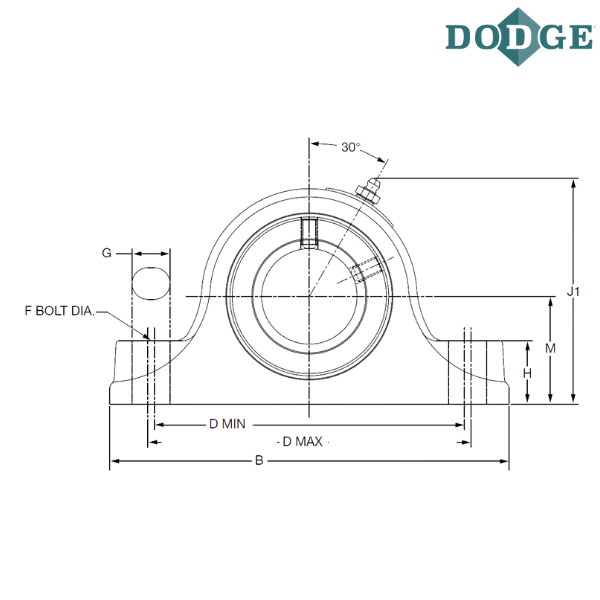

Bolt to Bolt Minimum Distance (D min) inch - 9.31
Bolt to Bolt Maximum Distance (D max) inch - 9.69
F-Bolt Diameter (inch) - 0.75
G (inch) - 1
H (inch) - 1.88
J (inch) - 6.25
Overall Height (J1) inch - 6.34
L (inch) - 4.72
Base to Center Height (M) inch - 3.13
Dynamic Load Capacity - Available on Request
Static Load Capacity - Available on Request
Maximum Speed - Available on Request
Notes :
P2B - Pillow Block 2-Bolt, Cast Iron
E - Type E
R - “XTS” Triple Lip Seal
** Images are for representation purposes only
